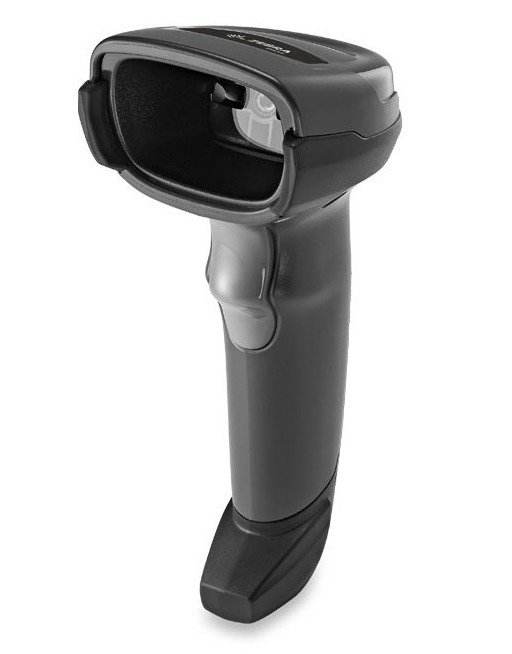

ZEBRA TECHNOLOGIES DS2208 Handheld Barcode Scanner - Cable Connectivity - Twilight Black - Imager
SKU DS2208-SR7U2100SGW
1 / 1At a glance
The ZEBRA TECHNOLOGIES DS2208 Handheld Barcode Scanner - Cable Connectivity - Twilight Black - Imager (part number DS2208-SR7U2100SGW) is supplied to trade with pricing on enquiry.
MPNDS2208-SR7U2100SGW
Delivery time3 to 5 days
Product information
Product details2 facts
| MPN | DS2208-SR7U2100SGW |
|---|---|
| Delivery time | 3 to 5 days |
Scanning10 facts
| Type | Handheld bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Sensor type | LED |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Working distance | 36.8 cm |
| Wavelength | 645 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -65 - 65° |
Ports & interfaces2 facts
| Connectivity technology | Wired |
|---|---|
| Standard interfaces | USB, RS-232, RS-485, Keyboard wedge |
Performance4 facts
| International Protection (IP) code | IP42 |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B |
Power4 facts
| Power source type | DC |
|---|---|
| Battery life | 100 h |
| AC adapter output voltage | 5 V |
| Power consumption | 250 mA |
Weight & dimensions4 facts
| Width | 66 mm |
|---|---|
| Depth | 99 mm |
| Height | 165 mm |
| Weight | 161.6 g |
Packaging data2 facts
| Cables included | Micro-USB |
|---|---|
| Charging base | No |
Operational conditions2 facts
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
Battery2 facts
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery capacity | 2400 mAh |
Technical details1 fact
| Compliance certificates | RoHS |
|---|
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
ZEBRA TECHNOLOGIES DS2208 Handheld Barcode Scanner - Cable Connectivity - Twilight Black - Imager
