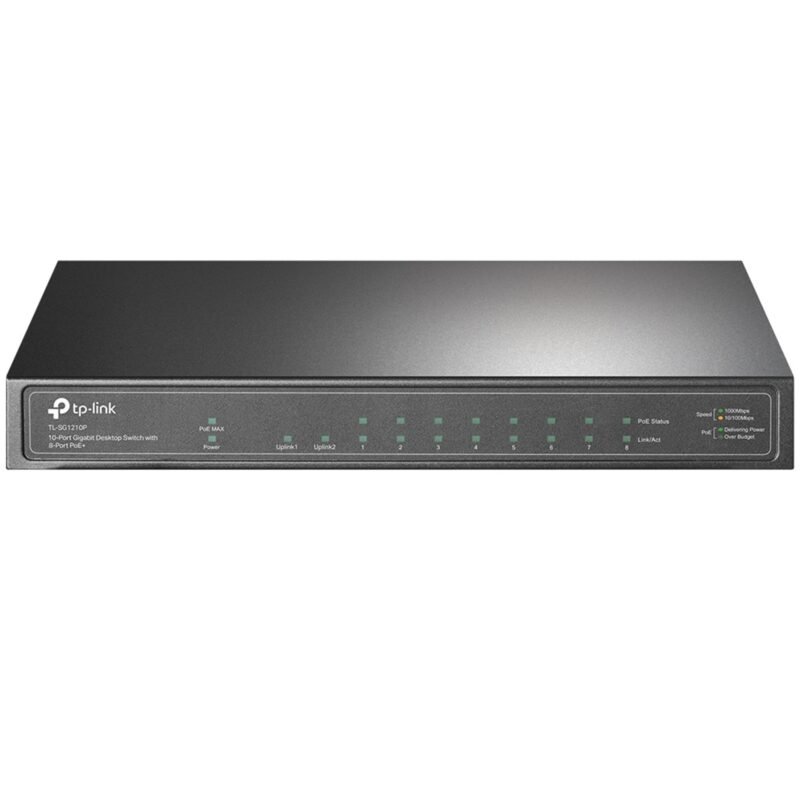

TP-Link TL-SG1210P 10-Port Metal Gigabit Desktop Switch with 8-Port PoE+ (63W)

SKU TL-SG1210P

At a glance

The TP-Link TL-SG1210P 10-Port Metal Gigabit Desktop Switch with 8-Port PoE+ (63W) (part number TL-SG1210P) is supplied to trade with pricing on enquiry.

MPNTL-SG1210P
Delivery time2 to 3 days
35 facts in 13 groups

Product information

Product details2 facts
Product details
MPNTL-SG1210P
Delivery time2 to 3 days
Management features2 facts
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces1 fact
Ports & interfaces
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network7 facts
Network
Networking standardsIEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Auto MDI/MDI-XYes
Auto-negotiationYes
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Optical fiber2 facts
Optical fiber
Fiber ethernet cabling technology1000BASE-X
Fiber typeSingle-mode
Data transmission2 facts
Data transmission
Switching capacity20 Gbit/s
Store-and-forwardYes
Security1 fact
Security
IGMP snoopingYes
Design4 facts
Design
Product colourGrey
Housing materialMetal
LED indicatorsYes
Wall mountableYes
Performance1 fact
Performance
FanlessYes
Power5 facts
Power
Power supply includedNo
DC input voltage53.5 V
Input current1.31 A
Power consumption (typical)7.11 W
Power consumption (max)78.13 W
Power over Ethernet (PoE)2 facts
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget63 W
Operational conditions3 facts
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Heat dissipation266.42 BTU/h
Weight & dimensions3 facts
Weight & dimensions
Width209 mm
Depth126 mm
Height26 mm

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

TP-Link TL-SG1210P 10-Port Metal Gigabit Desktop Switch with 8-Port PoE+ (63W)Ask for a quote
