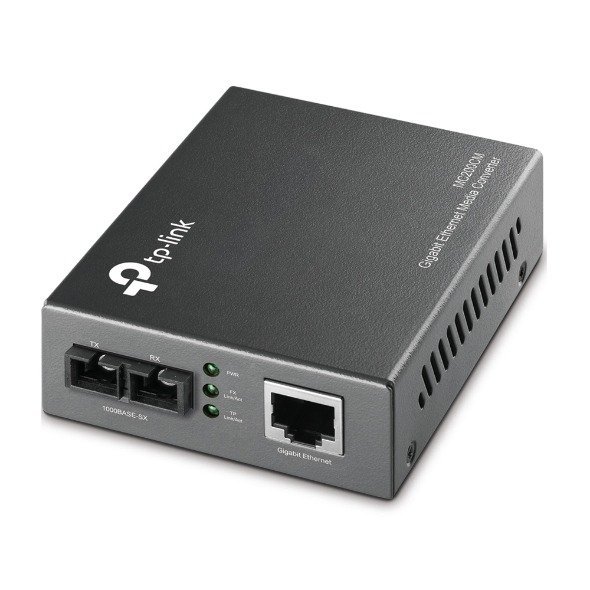

TP-LINK MC200CM Transceiver/Media Converter - 2 Port(s) - 1 x Network (RJ-45) - 1 x SC

SKU MC200CM

At a glance

The TP-LINK MC200CM Transceiver/Media Converter - 2 Port(s) - 1 x Network (RJ-45) - 1 x SC (part number MC200CM) is supplied to trade with pricing on enquiry.

MPNMC200CM
Delivery time1 to 2 days
Minimum Order Quantityn/a
27 facts in 10 groups

Product information

Product details3 facts
Product details
MPNMC200CM
Delivery time1 to 2 days
Minimum Order Quantityn/a
Network7 facts
Network
Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Auto MDI/MDI-XYes
Duplex systemFull, Half
Cable types supportedCat5, Cat5e
Performance4 facts
Performance
Maximum transfer distance550 m
Wavelength850 nm
Fiber mode structureMulti-mode
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
Features3 facts
Features
InternalNo
LED indicatorsYes
Product colourBlack
Ports & interfaces2 facts
Ports & interfaces
Connectivity technologyWired
Fiber optic connectorSC
Power1 fact
Power
Power consumption (max)1.66 W
Weight & dimensions3 facts
Weight & dimensions
Width95 mm
Depth73 mm
Height27 mm
Operational conditions2 facts
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Packaging content1 fact
Packaging content
ManualYes
Certificates1 fact
Certificates
Compliance certificatesRoHS
