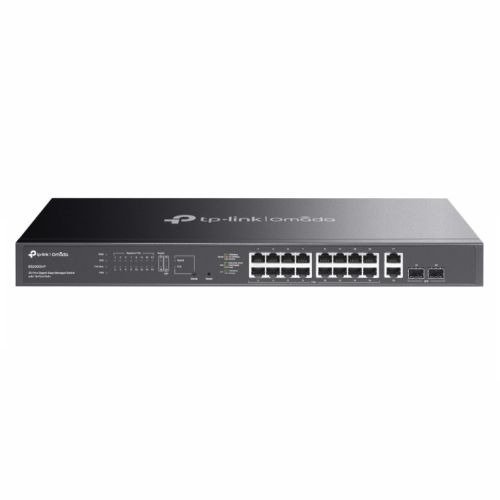

TP-LINK (ES220GMP) Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+, 2x GB SFP Ports, 250W Power Budget, Rackmountable
SKU ES220GMP
1 / 1At a glance
The TP-LINK (ES220GMP) Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+, 2x GB SFP Ports, 250W Power Budget, Rackmountable (part number ES220GMP) is supplied to trade with pricing on enquiry.
MPNES220GMP
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | ES220GMP |
|---|---|
| Delivery time | 2 to 3 days |
Management features6 facts
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Unified static configuration | Yes |
Ports & interfaces2 facts
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|---|
| Power connector | AC-in jack |
Network11 facts
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | No |
| Zero Touch Provisioning (ZTP) | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
Data transmission4 facts
| Switching capacity | 40 Gbit/s |
|---|---|
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 4 MB |
Security4 facts
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
Design5 facts
| Rack mounting | Yes |
|---|---|
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
Performance4 facts
| Flash memory | 64 MB |
|---|---|
| Noise level | 41.5 dB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 310550.7 h |
Power7 facts
| Power source | AC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 289.7 W |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)4 facts
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
Operational conditions3 facts
| Operating temperature (T-T) | -5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Heat dissipation | 984.88 BTU/h |
Weight & dimensions3 facts
| Width | 440 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
Packaging content3 facts
| Cables included | AC |
|---|---|
| User guide | Yes |
| Rack mount kit | Yes |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
