TP-LINK CPE510 IEEE 802.11n 300 Mbit/s Wireless Access Point - ISM Band - UNII Band

Name: TP-LINK CPE510 IEEE 802.11n 300 Mbit/s Wireless Access Point - ISM Band - UNII Band
SKU: CPE510

SKU CPE510

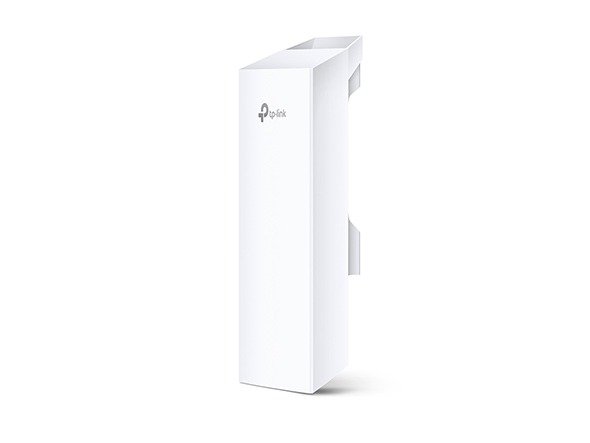

TP-LINK CPE510 IEEE 802.11n 300 Mbit/s Wireless Access Point - ISM Band - UNII Band, photo 1 of 1

1 / 1

At a glance

The TP-LINK CPE510 IEEE 802.11n 300 Mbit/s Wireless Access Point - ISM Band - UNII Band (part number CPE510) is supplied to trade with pricing on enquiry.

MPNCPE510

Delivery time2 to 3 days

35 facts in 13 groups

Product information

Filter specifications

Product details2 facts

Product details
MPN	CPE510
Delivery time	2 to 3 days

Features8 facts

Features
Maximum data transfer rate	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	5.15 - 5.85 GHz
Bandwidth	5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11n
Maximum outdoor range	15000 m
Receiver sensitivity	802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm

Security2 facts

Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes

Protocols1 fact

Protocols
Management protocols	TDMA

Management features2 facts

Management features
Web-based management	Yes
Management platform	Pharos Control

Ports & interfaces1 fact

Ports & interfaces
WAN connection	Ethernet (RJ-45)

Power5 facts

Power
Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.8 A
Power consumption (typical)	13 W

Design4 facts

Design
Product colour	White
Reset button	Yes
LED indicators	Yes
Internal	No

Antenna1 fact

Antenna
Antenna features	Integrated antenna

Performance4 facts

Performance
Built-in processor	Yes
Flash memory	8 MB
Internal memory	64 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Certificates1 fact

Certificates
Certification	FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS

Weight & dimensions3 facts

Weight & dimensions
Width	224 mm
Depth	75 mm
Height	60 mm

Packaging content1 fact

Packaging content
Cables included	AC
