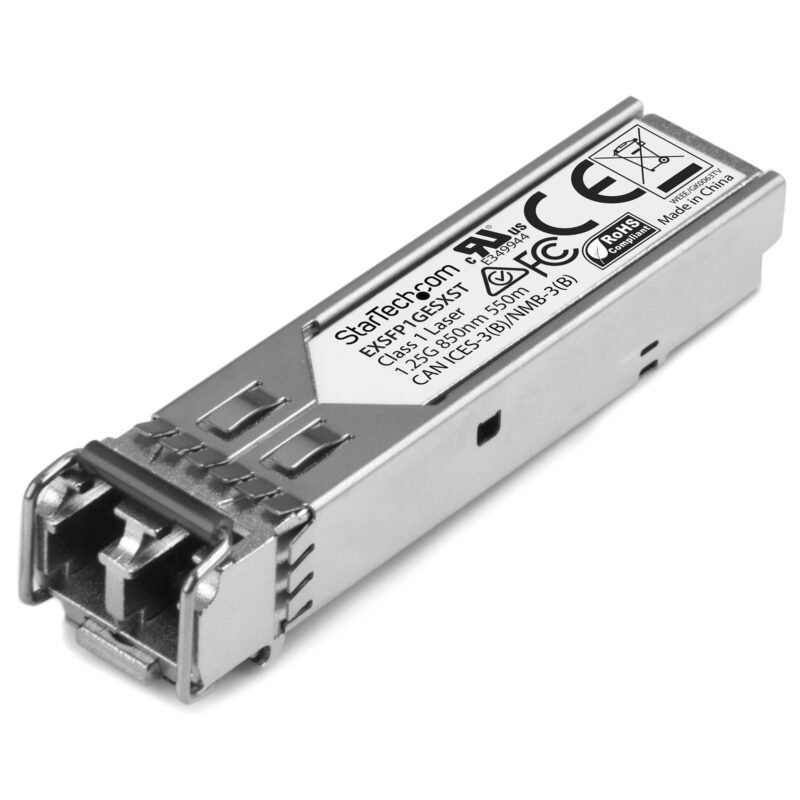

STARTECH.COM Juniper EX-SFP-1GE-SX Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Opti
Brand: StarTech.com
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 1250 Mbit/s
- Interface type
- SFP
- Multi-mode fiber (MMF) supported
- Yes
- Fiber optic connector
- LC
About this item
- 100% JUNIPER EX-SFP-1GE-SX COMPATIBLE SFP TRANSCEIVER: Designed, programmed and tested to work with compatible Juniper switches and routers to deliver reliable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-SX / 1Gbps / Multi Mode (MMF) / LC Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 550m (1804ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Juniper routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
£33.47 £38.97 (inc. VAT)
18 in stock
Free delivery on trade orders. Returns accepted within 30 days.
Delivery & returns info ›
Trade account & bulk pricing ›
Product description
StarTech.com Juniper EX-SFP-1GE-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM, Fiber optic, 1250 Mbit/s, SFP, LC, SX, 550 m
Product information
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3381761 h |
Power
| Power consumption (typical) | 1 W |
|---|
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 13.7 mm |
|---|---|
| Depth | 56.6 mm |
| Height | 12.5 mm |
| Weight | 14 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Packaging data
| Package width | 92 mm |
|---|---|
| Package depth | 114 mm |
| Package height | 33 mm |
| Package weight | 42 g |
Logistics data
| Master (outer) case width | 206 mm |
|---|---|
| Master (outer) case length | 310 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 262 mm |
| Products per master (outer) case | 36 pc(s) |
| Country of origin | China |
