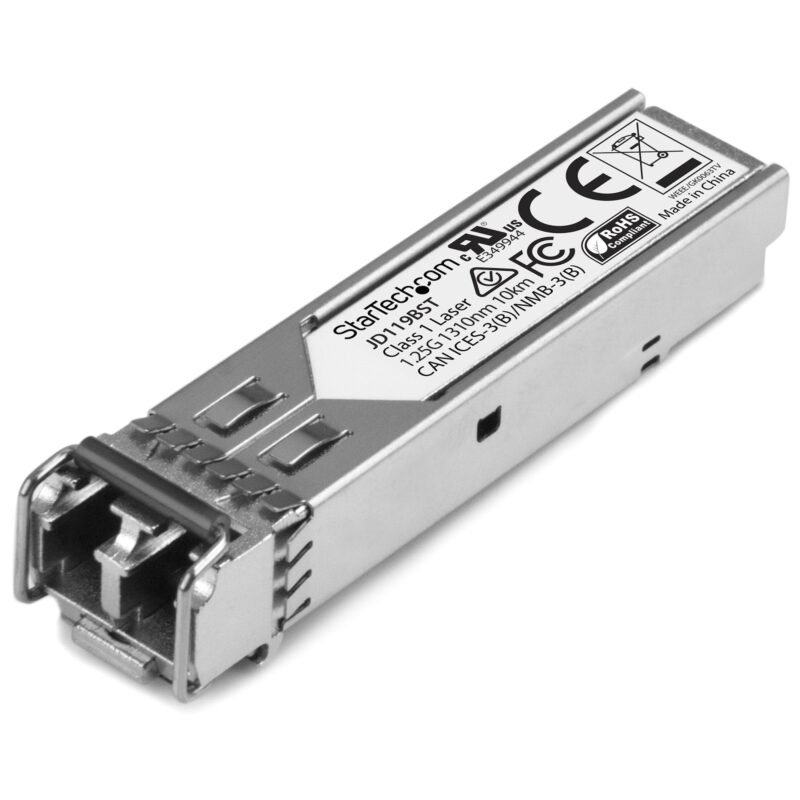

STARTECH.COM HPE JD119B Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode (SMF) Fiber Optic Trans

SKU JD119BST

At a glance

The STARTECH.COM HPE JD119B Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode (SMF) Fiber Optic Trans (part number JD119BST) is supplied to trade with pricing on enquiry.

MPNJD119BST
Delivery time2 to 3 days
34 facts in 9 groups

Product information

Product details2 facts
Product details
MPNJD119BST
Delivery time2 to 3 days
Performance11 facts
Performance
SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
SFP transceiver standardLX
Maximum transfer distance10000 m
Wavelength1310 nm
Networking standardsIEEE 802.3z
Duplex systemFull
Digital Diagnostics Monitoring (DDM)Yes
Features4 facts
Features
Product colourSilver
Housing materialAluminium
Hot-swapYes
Mean time between failures (MTBF)3092408 h
Power1 fact
Power
Power consumption (typical)1 W
Certificates2 facts
Certificates
Compliance certificatesRoHS
CertificationCE, FCC, UR
Operational conditions2 facts
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Weight & dimensions4 facts
Weight & dimensions
Width13.7 mm
Depth56.6 mm
Height12.5 mm
Weight16 g
Packaging data4 facts
Packaging data
Package width93 mm
Package depth114 mm
Package height32 mm
Package weight46 g
Logistics data4 facts
Logistics data
Master (outer) case width254 mm
Master (outer) case length305 mm
Master (outer) case height201 mm
Country of originChina

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

STARTECH.COM HPE JD119B Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode (SMF) Fiber Optic TransAsk for a quote
