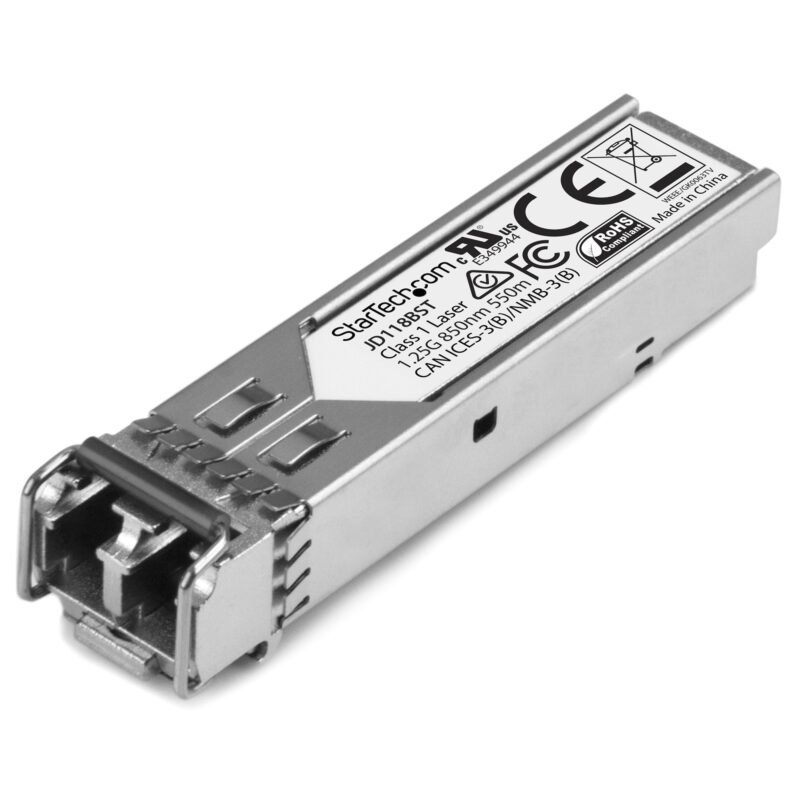

STARTECH.COM HPE JD118B Compatible SFP Module, 1000BASE-SX, 1GbE Multi Mode (MMF) Fiber Optic Transc

SKU JD118BST

At a glance

The STARTECH.COM HPE JD118B Compatible SFP Module, 1000BASE-SX, 1GbE Multi Mode (MMF) Fiber Optic Transc (part number JD118BST) is supplied to trade with pricing on enquiry.

MPNJD118BST
Delivery time1 to 2 days
Minimum Order Quantityn/a
35 facts in 9 groups

Product information

Product details3 facts
Product details
MPNJD118BST
Delivery time1 to 2 days
Minimum Order Quantityn/a
Performance11 facts
Performance
SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Multi-mode fiber (MMF) supportedYes
Fiber optic connectorLC
SFP transceiver standardSX
Maximum transfer distance550 m
Wavelength850 nm
Networking standardsIEEE 802.3z
Duplex systemFull
Digital Diagnostics Monitoring (DDM)Yes
Features4 facts
Features
Product colourSilver
Housing materialAluminium
Hot-swapYes
Mean time between failures (MTBF)3381761 h
Power1 fact
Power
Power consumption (typical)1 W
Certificates2 facts
Certificates
Compliance certificatesRoHS
CertificationCE, FCC, UR
Operational conditions2 facts
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Weight & dimensions4 facts
Weight & dimensions
Width13.7 mm
Depth56.6 mm
Height12.5 mm
Weight18 g
Packaging data4 facts
Packaging data
Package width114 mm
Package depth93 mm
Package height32 mm
Package weight46 g
Logistics data4 facts
Logistics data
Master (outer) case width250 mm
Master (outer) case length300 mm
Master (outer) case height203 mm
Country of originChina
