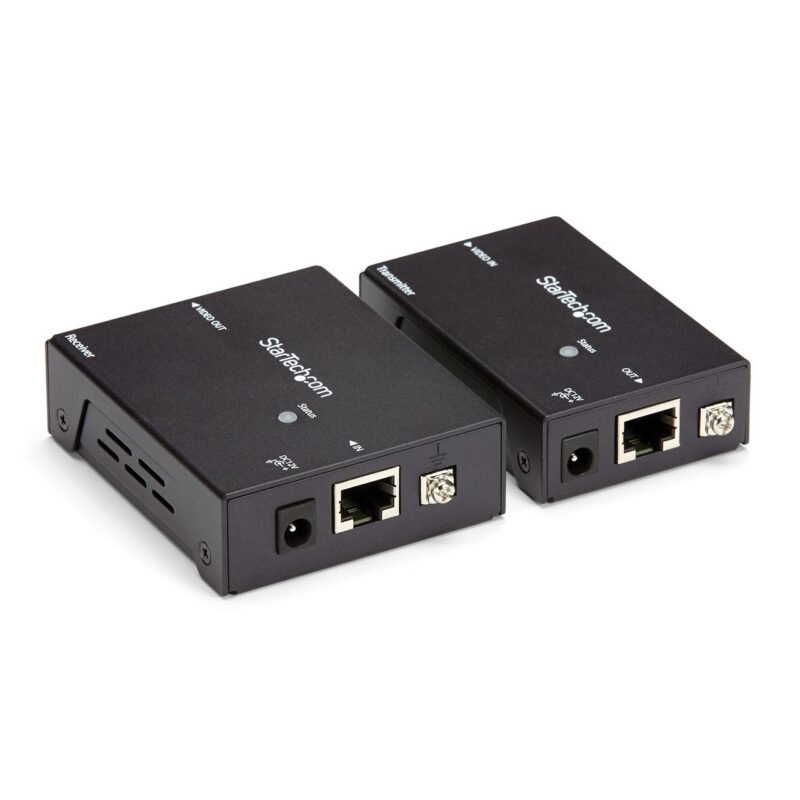

STARTECH.COM HDMI over CAT5e / CAT6 Ethernet Extender with HDBaseT - 4K@115ft, 1080p@230ft
SKU ST121HDBTE
1 / 1At a glance
The STARTECH.COM HDMI over CAT5e / CAT6 Ethernet Extender with HDBaseT - 4K@115ft, 1080p@230ft (part number ST121HDBTE) is supplied to trade with pricing on enquiry.
MPNST121HDBTE
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | ST121HDBTE |
|---|---|
| Delivery time | 2 to 3 days |
Features15 facts
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Audio system | Multichannel |
| Audio output channels | 7.1 channels |
| LED indicators | Status |
| Supported video modes | 720p, 1080p |
| Cable length | 0.1 m |
| Material | Aluminium |
| Daisy chain | No |
| Mean time between failures (MTBF) | 52000 h |
| Product colour | Black |
| Certification | CE, FCC, HDBT, TAA |
Ports & interfaces2 facts
| Connectivity technology | Wired |
|---|---|
| DC-in jack | Yes |
Power6 facts
| AC input voltage | 110 - 240 V |
|---|---|
| Operating voltage | 12 V |
| Input current | 0.5 A |
| Output current | 1.5 A |
| Power consumption (typical) | 3 W |
| Power plug type | Type M |
Operational conditions2 facts
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions4 facts
| Width | 67 mm |
|---|---|
| Depth | 80 mm |
| Height | 25 mm |
| Weight | 428 g |
Packaging data4 facts
| Package width | 158 mm |
|---|---|
| Package depth | 234 mm |
| Package height | 70 mm |
| Package weight | 1.1 kg |
Packaging content6 facts
| AC adapter included | Yes |
|---|---|
| Cables included | LAN (RJ-45) |
| Included power plug types | AU, EU, NA, UK |
| Manual | Yes |
| Mounting brackets included | Yes |
| Grounding wire | Yes |
Technical details2 facts
| Audio support | Yes |
|---|---|
| Compliance certificates | RoHS |
Logistics data3 facts
| Master (outer) case width | 322 mm |
|---|---|
| Master (outer) case length | 416 mm |
| Master (outer) case height | 264 mm |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
