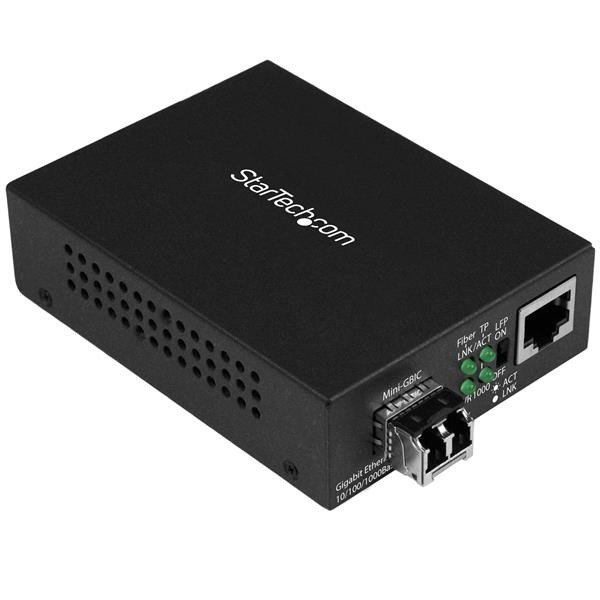

STARTECH.COM Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
SKU MCM1110MMLC
1 / 1At a glance
The STARTECH.COM Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m (part number MCM1110MMLC) is supplied to trade with pricing on enquiry.
MPNMCM1110MMLC
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | MCM1110MMLC |
|---|---|
| Delivery time | 2 to 3 days |
Network10 facts
| Maximum data transfer rate | 1000 Mbit/s |
|---|---|
| Converter input interface | 1000Base-T, 100Base-TX, 10Base-T |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate | 1000 Mbit/s |
| Jumbo frames support | Yes |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
Performance5 facts
| Maximum transfer distance | 550 m |
|---|---|
| Wavelength | 850 nm |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 50000 h |
Features4 facts
| Internal | No |
|---|---|
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Housing material | Steel |
Ports & interfaces3 facts
| Connectivity technology | Wired |
|---|---|
| Fiber optic connector | LC |
| DC-in jack | Yes |
Power7 facts
| Input voltage | 100 - 240 V |
|---|---|
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power over Ethernet (PoE) | No |
| External power adapter | Yes |
| Power plug type | Type N |
Weight & dimensions4 facts
| Width | 70 mm |
|---|---|
| Depth | 94 mm |
| Height | 26 mm |
| Weight | 201 g |
Operational conditions2 facts
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
Packaging content1 fact
| Manual | Yes |
|---|
Packaging data4 facts
| Package width | 286 mm |
|---|---|
| Package depth | 138 mm |
| Package height | 69 mm |
| Package weight | 556 g |
Certificates2 facts
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, REACH, TAA |
Logistics data3 facts
| Master (outer) case width | 588 mm |
|---|---|
| Master (outer) case length | 369 mm |
| Master (outer) case height | 313 mm |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
STARTECH.COM Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
