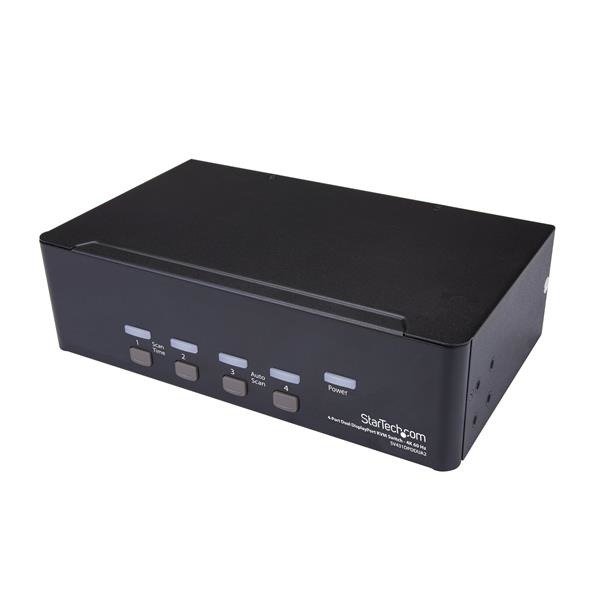

STARTECH.COM DisplayPort KVM - 4 port - 4K 60Hz - Dual Monitor KVM - DisplayPort Switch
SKU SV431DPDDUA2
1 / 1At a glance
The STARTECH.COM DisplayPort KVM - 4 port - 4K 60Hz - Dual Monitor KVM - DisplayPort Switch (part number SV431DPDDUA2) is supplied to trade with pricing on enquiry.
MPNSV431DPDDUA2
Delivery time1 to 2 days
Product information
Product details2 facts
| MPN | SV431DPDDUA2 |
|---|---|
| Delivery time | 1 to 2 days |
Ports & interfaces8 facts
| Keyboard port type | USB |
|---|---|
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB hub | Yes |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| DC-in jack | Yes |
Performance5 facts
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 0.5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| Daisy chain | No |
Design8 facts
| Rack mounting | Yes |
|---|---|
| Rack capacity | 2U |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 142000 h |
| Certification | CE, FCC, TAA, REACH |
Display1 fact
| Built-in display | No |
|---|
Power9 facts
| Power source | AC |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, JP, UK, US |
Sustainability1 fact
| Compliance certificates | RoHS |
|---|
Operational conditions2 facts
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions4 facts
| Width | 216 mm |
|---|---|
| Depth | 127 mm |
| Height | 63 mm |
| Weight | 1.2 kg |
Packaging data4 facts
| Package width | 244 mm |
|---|---|
| Package depth | 296 mm |
| Package height | 86 mm |
| Package weight | 1.8 kg |
Packaging content2 facts
| Quick installation guide | Yes |
|---|---|
| Rubber feet | Yes |
Other features2 facts
| Audio support | Yes |
|---|---|
| IP control | No |
Logistics data3 facts
| Master (outer) case width | 514 mm |
|---|---|
| Master (outer) case length | 321 mm |
| Master (outer) case height | 299 mm |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
STARTECH.COM DisplayPort KVM - 4 port - 4K 60Hz - Dual Monitor KVM - DisplayPort Switch
