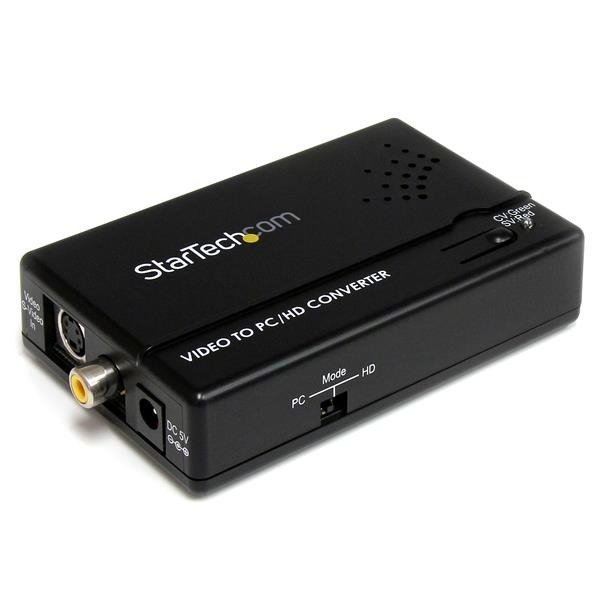

STARTECH.COM Composite and S-Video to VGA Video Scan Converter - composite to VGA - scan Converter

SKU VID2VGATV2

At a glance

The STARTECH.COM Composite and S-Video to VGA Video Scan Converter - composite to VGA - scan Converter (part number VID2VGATV2) is supplied to trade with pricing on enquiry.

MPNVID2VGATV2
Delivery time2 to 3 days
31 facts in 10 groups

Product information

Product details2 facts
Product details
MPNVID2VGATV2
Delivery time2 to 3 days
Features6 facts
Features
Converter typeActive video converter
On Screen Display (OSD)Yes
Plug and PlayYes
Product colourBlack
Housing materialPlastic
CertificationCE, FCC, TAA, REACH
Video3 facts
Video
Maximum video resolution1600 x 1200 pixels
Analog signal format systemNTSC, PAL
Maximum refresh rate60 Hz
Ports & interfaces2 facts
Ports & interfaces
Host interfaceComposite, S-Video
Output interfaceVGA
Power4 facts
Power
External power adapterYes
Operating voltage5 V
Operating current1 A
Power consumption (typical)2.5 W
Technical details1 fact
Technical details
Compliance certificatesRoHS
Operational conditions2 facts
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)0 - 60 °C
Weight & dimensions4 facts
Weight & dimensions
Width64 mm
Depth112 mm
Height26 mm
Weight86 g
Packaging data4 facts
Packaging data
Package width117 mm
Package depth210 mm
Package height62 mm
Package weight459 g
Logistics data3 facts
Logistics data
Master (outer) case width384 mm
Master (outer) case length450 mm
Master (outer) case height336 mm

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

STARTECH.COM Composite and S-Video to VGA Video Scan Converter - composite to VGA - scan ConverterAsk for a quote
