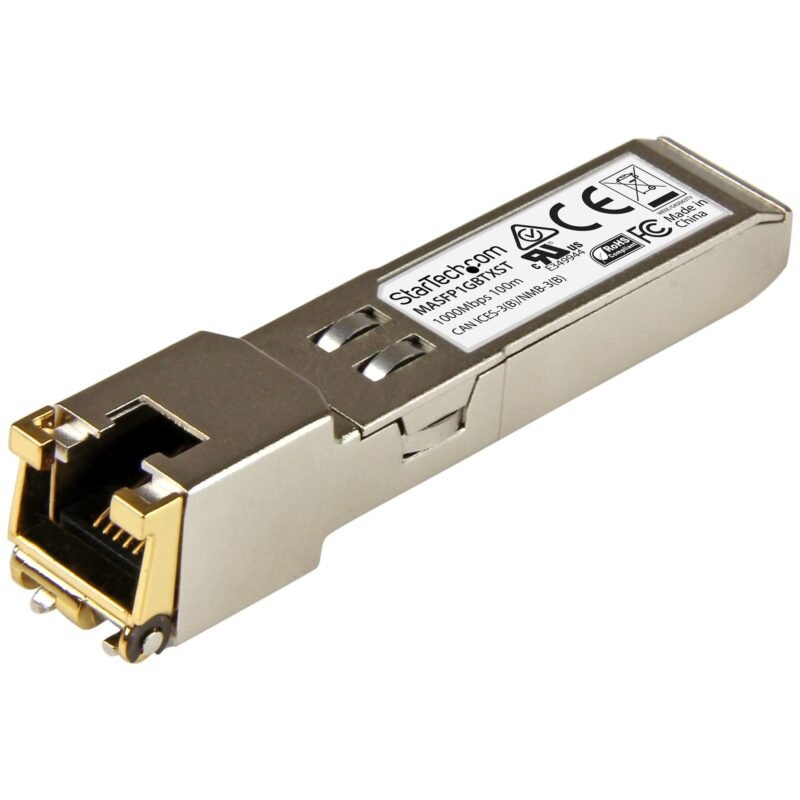

STARTECH.COM Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module, 1000BASE-T, SFP to RJ45 Cat6/Cat5e, 1

SKU MASFP1GBTXST

At a glance

The STARTECH.COM Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module, 1000BASE-T, SFP to RJ45 Cat6/Cat5e, 1 (part number MASFP1GBTXST) is supplied to trade with pricing on enquiry.

MPNMASFP1GBTXST
Delivery time2 to 3 days
33 facts in 9 groups

Product information

Product details2 facts
Product details
MPNMASFP1GBTXST
Delivery time2 to 3 days
Performance11 facts
Performance
SFP transceiver typeCopper
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
SFP transceiver standardTX
Maximum transfer distance100 m
Ethernet LANYes
Networking standardsIEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Duplex systemFull
Auto MDI/MDI-XYes
Auto-negotiationYes
Digital Diagnostics Monitoring (DDM)No
Features4 facts
Features
Product colourSilver
Housing materialAluminium
Hot-Plug supportYes
Mean time between failures (MTBF)4655371 h
Power1 fact
Power
Power consumption (typical)1.3 W
Certificates1 fact
Certificates
Compliance certificatesCE, RoHS
Operational conditions2 facts
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Weight & dimensions4 facts
Weight & dimensions
Width18 mm
Depth68 mm
Height13.8 mm
Weight21 g
Packaging data4 facts
Packaging data
Package width93 mm
Package depth114 mm
Package height33 mm
Package weight51 g
Logistics data4 facts
Logistics data
Master (outer) case width349 mm
Master (outer) case length431 mm
Master (outer) case height358 mm
Country of originChina

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

STARTECH.COM Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module, 1000BASE-T, SFP to RJ45 Cat6/Cat5e, 1Ask for a quote
