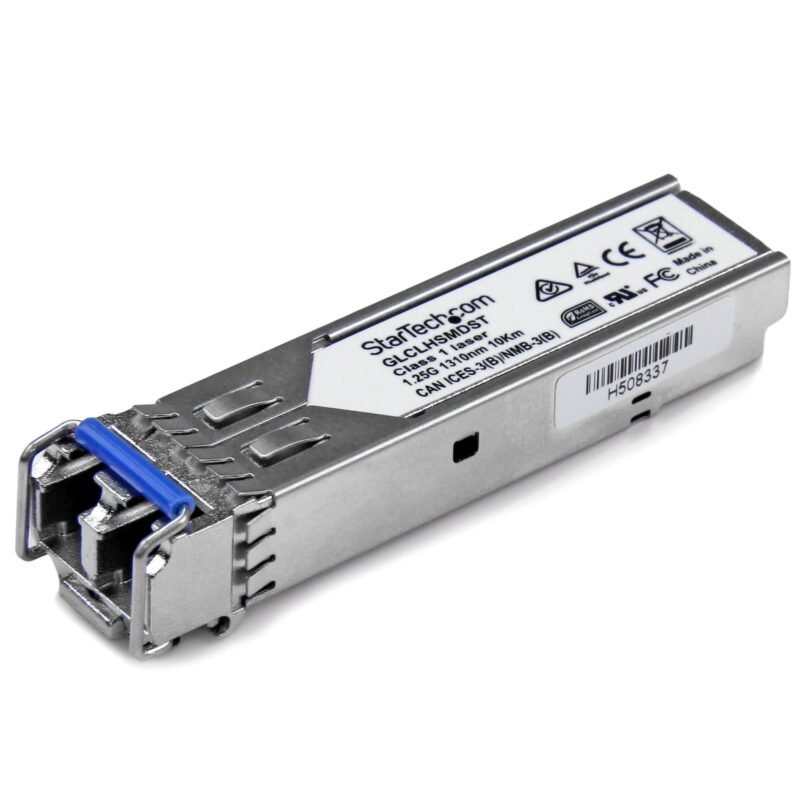

STARTECH.COM Cisco GLC-LH-SMD Compatible SFP Module, 1000BASE-LX/LH, 1GbE Single Mode (SMF) Fiber Op
Brand: StarTech.com
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 1250 Mbit/s
- Interface type
- SFP
- Single-mode fiber (SMF) supported
- Yes
- Multi-mode fiber (MMF) supported
- Yes
About this item
- 100% CISCO GLC-LH-SMD COMPATIBLE: Works with Cisco switches like Firepower, ASR920, IE2000, IE4000, ASR1000 and others
- TECHNICAL SPECS: 1000BASE-LX/LH / 1 Gbps / Single Mode (SMF)/Multi Mode (MMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
£38.73 £44.23 (inc. VAT)
20 in stock
Free delivery on trade orders. Returns accepted within 30 days.
Delivery & returns info ›
Trade account & bulk pricing ›
Product description
StarTech.com Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LX/LH - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM Cisco Firepower, ASR920, IE2000, Fiber optic, 1250 Mbit/s, SFP, LC, LH, LX, 10000 m
Product information
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LH, LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 200000 h |
| Brand compatibility | Cisco |
| Compatible products | GLC-LH-SMD |
Power
| Power consumption (typical) | 1 W |
|---|
Certificates
| Compliance certificates | CE, RoHS |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 12 mm |
|---|---|
| Depth | 58 mm |
| Height | 8 mm |
| Weight | 18 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Packaging data
| Package width | 91 mm |
|---|---|
| Package depth | 112 mm |
| Package height | 33 mm |
| Package weight | 95 g |
Logistics data
| Master (outer) case width | 346 mm |
|---|---|
| Master (outer) case length | 427 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 356 mm |
| Products per master (outer) case | 108 pc(s) |
| Country of origin | China |
