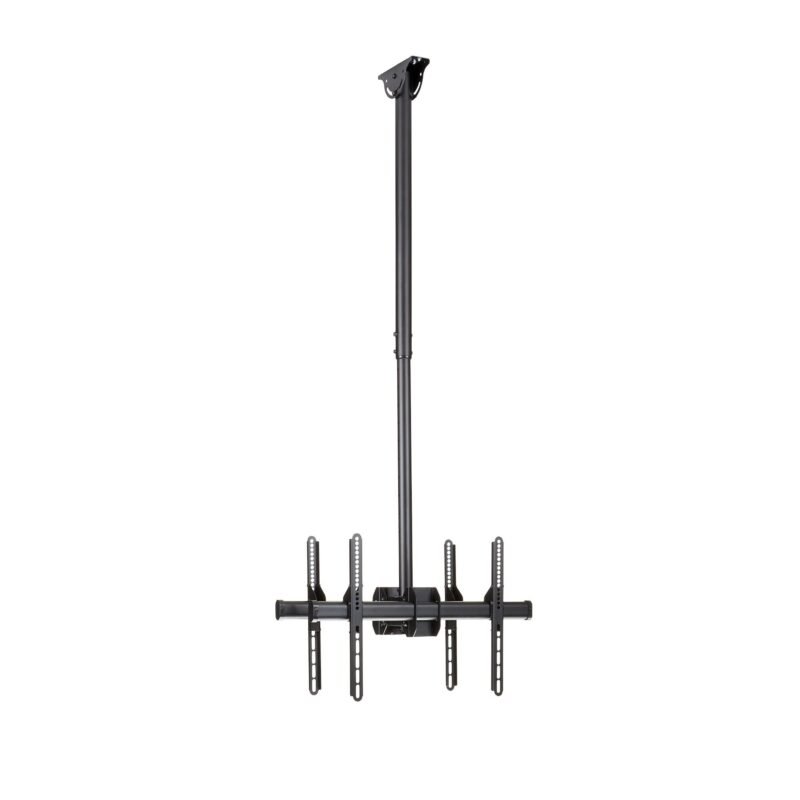

STARTECH.COM CEILING TV MOUNT BACK-TO-BACK
Brand: StarTech.com
- Maximum weight capacity
- 90 kg
- Minimum screen size
- 81.3 cm (32")
- Number of displays supported
- 2
- Maximum weight capacity (per display)
- 45 kg
- Maximum screen size
- 190.5 cm (75")
About this item
- BACK TO BACK DUAL 75" TV CEILING MOUNT: Heavy-duty VESA compatible ceiling mount supports displays up to 75" (110lb/50kg) per screen, including curved TVs; Height adjustable pole, 41.7" - 61.4" (106cm - 156cm) from ceiling
- WIDE RANGE OF MOTION: Ceiling TV mount allows for both displays to be swiveled 360° around the telescopic pole, and individually rotated +/-3° & tilted +5/-20°; TV position secured w/ provided tools
- VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for multiple screens allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level
- COMPATIBILITY: Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
- TIDY AESTHETIC: The double television ceiling mount for two large displays provides a hook-and-mount design for easy setup and integrated cable management; ideal for digital signage applications
£224.12 £229.62 (inc. VAT)
4 in stock
Free delivery on trade orders. Returns accepted within 30 days.
Delivery & returns info ›
Trade account & bulk pricing ›
Product description
StarTech.com Dual TV Ceiling Mount - Back-to-Back Heavy Duty Hanging Dual Screen Mount with Adjustable Telescopic Pole - Tilt/Swivel/Rotate - VESA Bracket for 32”-75" Displays, 90 kg, 81.3 cm (32"), 190.5 cm (75"), 200 x 200 mm, 600 x 400 mm, 1060 - 1560 mm
Product information
Mounting
| Maximum weight capacity | 90 kg |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 45 kg |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
Ergonomics
| Height adjustment | Yes |
|---|---|
| Height adjustment range | 1060 - 1560 mm |
| Tilt angle range | -20 - 5° |
| Swivel angle range | -180 - 180° |
| Angle of rotation | 360° |
| Adjustable | Yes |
Design
| Product colour | Black |
|---|---|
| Housing material | Steel |
| Anti-theft function | No |
Weight & dimensions
| Width | 165 mm |
|---|---|
| Depth | 680 mm |
| Depth (max) | 68 cm |
| Height | 835 mm |
| Weight | 9.8 kg |
Packaging data
| Package width | 934 mm |
|---|---|
| Package depth | 317 mm |
| Package height | 153 mm |
| Package weight | 10.8 kg |
Packaging content
| Manual | Yes |
|---|---|
| Screws included | Yes |
| Number of screws | 46 |
| Wrench included | Yes |
| Nuts included | Yes |
| Number of nuts | 2 |
| Washers included | Yes |
| Number of washers included | 12 |
| Spacer included | Yes |
| Number of spacers included | 32 |
Technical details
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Harmonized System (HS) code | 85299097 |
|---|---|
| Master (outer) case width | 345 mm |
| Master (outer) case length | 960 mm |
| Master (outer) case height | 312 mm |
| Products per master (outer) case | 2 pc(s) |
