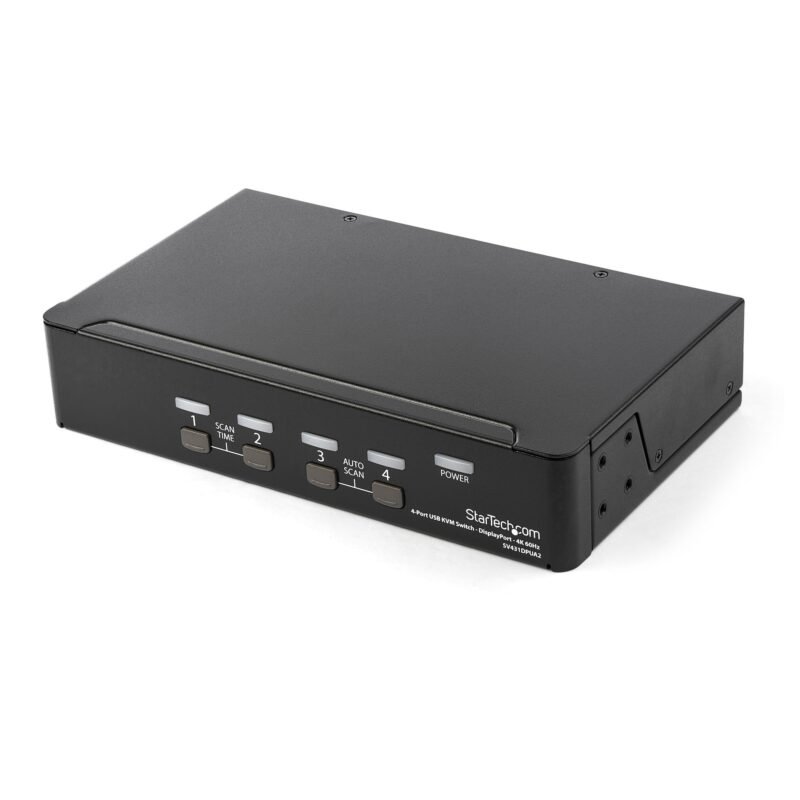

STARTECH.COM 4 Port DisplayPort KVM Switch, 4K 60Hz, Single Display, Dual Port UHD DP 1.2 USB KVM Sw
SKU SV431DPUA2
1 / 1At a glance
The STARTECH.COM 4 Port DisplayPort KVM Switch, 4K 60Hz, Single Display, Dual Port UHD DP 1.2 USB KVM Sw (part number SV431DPUA2) is supplied to trade with pricing on enquiry.
MPNSV431DPUA2
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | SV431DPUA2 |
|---|---|
| Delivery time | 2 to 3 days |
Ports & interfaces6 facts
| Keyboard port type | USB |
|---|---|
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Audio connections | Yes |
| DC-in jack | Yes |
Network1 fact
| Ethernet LAN | No |
|---|
Performance7 facts
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 0.48 Gbit/s |
| Scan interval | 3,8,15,30 s |
| Plug and Play | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
Design8 facts
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 138327 h |
| Certification | CE, FCC, TAA, REACH |
Display1 fact
| On Screen Display (OSD) | Yes |
|---|
Power8 facts
| Input voltage | 100 - 240 V |
|---|---|
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, JP, UK, US |
Sustainability1 fact
| Compliance certificates | RoHS |
|---|
Operational conditions2 facts
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions4 facts
| Width | 131 mm |
|---|---|
| Depth | 220 mm |
| Height | 45 mm |
| Weight | 1 kg |
Packaging data4 facts
| Package width | 412 mm |
|---|---|
| Package depth | 216 mm |
| Package height | 89 mm |
| Package weight | 1.6 kg |
Packaging content3 facts
| Quick installation guide | Yes |
|---|---|
| AC adapter included | Yes |
| Rubber feet | Yes |
Other features2 facts
| Audio support | Yes |
|---|---|
| IP control | No |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
