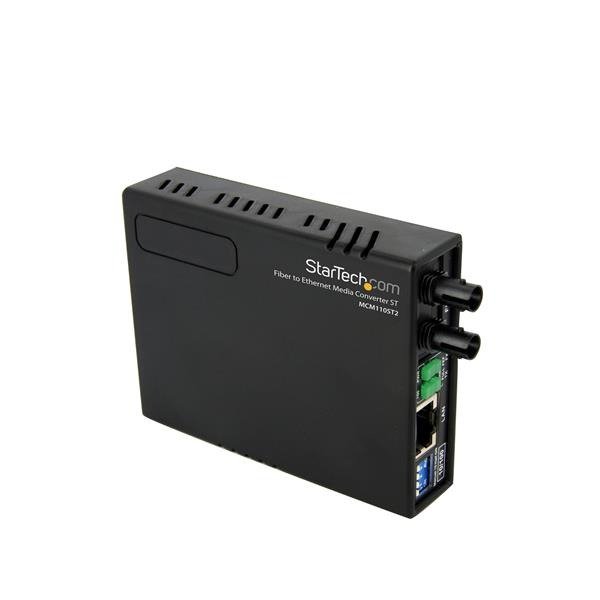

STARTECH.COM 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km

SKU MCM110ST2GB

At a glance

The STARTECH.COM 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km (part number MCM110ST2GB) is supplied to trade with pricing on enquiry.

MPNMCM110ST2GB
Delivery time2 to 3 days
43 facts in 13 groups

Product information

Product details2 facts
Product details
MPNMCM110ST2GB
Delivery time2 to 3 days
Network8 facts
Network
Maximum data transfer rate100 Mbit/s
Converter input interface10Base-T
Converter output interface100Base-FX
Networking standardsIEEE 802.3, IEEE 802.3u
Jumbo frames supportYes
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Performance4 facts
Performance
Maximum transfer distance2000 m
Wavelength1310 nm
Wavelength-division multiplexing (WDM)No
Fiber mode structureMulti-mode
Features3 facts
Features
InternalNo
LED indicatorsActivity, Link, Power, Speed
Product colourBlack
Ports & interfaces3 facts
Ports & interfaces
Connectivity technologyWired
Fiber optic connectorST
DC-in jackYes
Power6 facts
Power
Input voltage100 - 240 V
Output voltage12 V
Output current0.2 A
Power consumption (typical)2.4 W
External power adapterYes
Power plug typeType M
Weight & dimensions4 facts
Weight & dimensions
Width75 mm
Depth95 mm
Height20 mm
Weight90.5 g
Operational conditions2 facts
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 70 °C
Packaging content2 facts
Packaging content
AC adapter includedYes
ManualYes
Packaging data4 facts
Packaging data
Package width145 mm
Package depth175 mm
Package height65 mm
Package weight300 g
Certificates1 fact
Certificates
Compliance certificatesCE, RoHS
Logistics data3 facts
Logistics data
Master (outer) case width390 mm
Master (outer) case length480 mm
Master (outer) case height300 mm
Other features1 fact
Other features
Full duplexYes

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

STARTECH.COM 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 kmAsk for a quote
