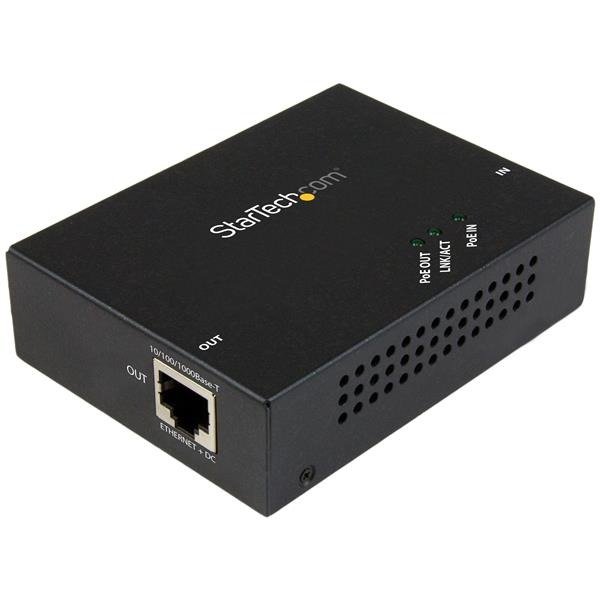

STARTECH.COM 1 Port Gigabit PoE+ Extender 802.3at & 802.3af -100m (330 ft.)

SKU POEEXT1GAT

At a glance

The STARTECH.COM 1 Port Gigabit PoE+ Extender 802.3at & 802.3af -100m (330 ft.) (part number POEEXT1GAT) is supplied to trade with pricing on enquiry.

MPNPOEEXT1GAT
Delivery time2 to 3 days
35 facts in 11 groups

Product information

Product details2 facts
Product details
MPNPOEEXT1GAT
Delivery time2 to 3 days
Performance9 facts
Performance
TypeNetwork repeater
Maximum transfer distance100 m
Data transfer rate2000 Mbit/s
Auto MDIX IEEEYes
Jumbo frames supportNo
Auto-negotiationYes
Duplex systemFull, Half
Plug and PlayYes
Mean time between failures (MTBF)50000 h
Network2 facts
Network
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Design4 facts
Design
Product colourBlack
Housing materialSteel
LED indicatorsActivity, Link, PoE
CertificationCE, FCC, TAA, REACH
Power3 facts
Power
AC input voltage52 - 56 V
Power consumption (max)3.2 W
Power over Ethernet (PoE)Yes
Operational conditions2 facts
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 85 °C
Weight & dimensions4 facts
Weight & dimensions
Width69 mm
Depth94 mm
Height25 mm
Weight193 g
Packaging content1 fact
Packaging content
ManualYes
Packaging data4 facts
Packaging data
Package width138 mm
Package depth205 mm
Package height72 mm
Package weight343 g
Certificates1 fact
Certificates
Compliance certificatesRoHS
Logistics data3 facts
Logistics data
Master (outer) case width368 mm
Master (outer) case length578 mm
Master (outer) case height300 mm
