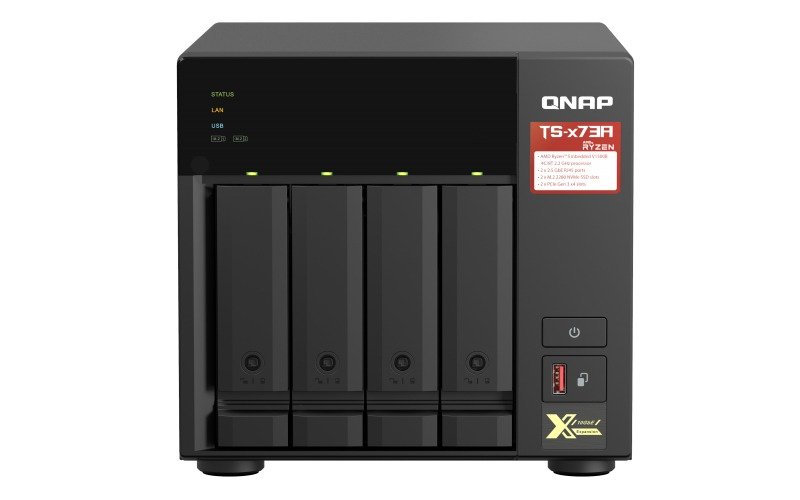

QNAP TS-473A-8G 4 BAY 2.2 GHZ 4C/8T
SKU TS-473A-8G
1 / 1At a glance
The QNAP TS-473A-8G 4 BAY 2.2 GHZ 4C/8T (part number TS-473A-8G) is supplied to trade with pricing on enquiry.
MPNTS-473A-8G
Delivery time1 to 2 days
Product information
Product details2 facts
| MPN | TS-473A-8G |
|---|---|
| Delivery time | 1 to 2 days |
Storage14 facts
| Storage drive capacity | 0 GB |
|---|---|
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | M.2, Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| System drive capacity | 5 GB |
| RAID support | Yes |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
Processor6 facts
| Processor manufacturer | AMD |
|---|---|
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor frequency | 2.2 GHz |
| On-board graphics card model | Not available |
Memory6 facts
| Internal memory | 8 GB |
|---|---|
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Memory form factor | SO-DIMM |
| ECC | Yes |
| Flash memory | 5000 MB |
Network6 facts
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
Ports & interfaces2 facts
| USB port | Yes |
|---|---|
| Concurrent connections | 2000 |
Design7 facts
| Chassis type | Tower |
|---|---|
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 12 cm |
| Drive bay locking | Yes |
| LED indicators | LAN, Power, SSD, Status, USB |
Performance15 facts
| Type | NAS |
|---|---|
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Buzzer | Yes |
| Noise level | 21.4 dB |
| Security algorithms | 256-bit AES, FIPS 140-2, SSH, SSL/TLS |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| Browser supported | Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari |
| Password authentication | Yes |
| Disk scan | Yes |
| S.M.A.R.T. support | Yes |
| Remotely operated | Yes |
Software5 facts
| Operating system installed | QNAP Turbo System |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Power7 facts
| Power supply location | Built-in |
|---|---|
| Power supply unit (PSU) capacity | 250 W |
| Power consumption (typical) | 29.792 W |
| Power consumption (HDD standby) | 19.576 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50-60 Hz |
| Output current | 3.5 A |
Weight & dimensions8 facts
| Width | 199.3 mm |
|---|---|
| Depth | 279.6 mm |
| Height | 188.2 mm |
| Weight | 5.03 kg |
| Package width | 255 mm |
| Package depth | 383 mm |
| Package height | 345 mm |
| Package weight | 6.12 kg |
Packaging content2 facts
| Cables included | AC, LAN (RJ-45) |
|---|---|
| Package type | Box |
Operational conditions2 facts
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
