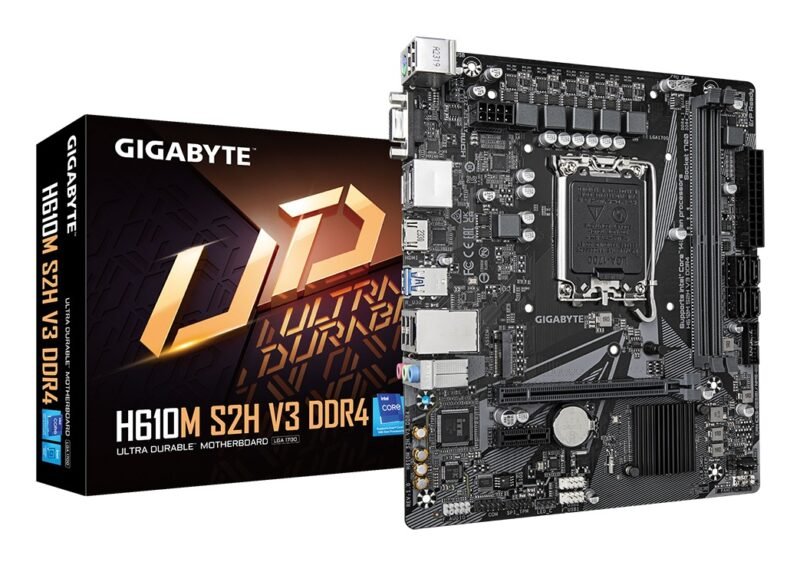

Gigabyte H610M S2H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port

SKU H610M S2H V3 DDR4

At a glance

The Gigabyte H610M S2H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port (part number H610M S2H V3 DDR4) is supplied to trade with pricing on enquiry.

MPNH610M S2H V3 DDR4
Delivery time2 to 3 days
51 facts in 12 groups

Product information

Product details2 facts
Product details
MPNH610M S2H V3 DDR4
Delivery time2 to 3 days
Processor4 facts
Processor
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Supported processor socketsLGA 1700
Memory8 facts
Memory
Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2666,2933,3000,3200 MHz
Supported memory clock speed (max)3200 MHz
Maximum internal memory64 GB
Unbuffered memoryYes
Storage controllers2 facts
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Graphics3 facts
Graphics
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304 pixels
HDCPYes
Internal I/O9 facts
Internal I/O
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
12V power connectorYes
RGB LED pin headerYes
Rear panel I/O ports3 facts
Rear panel I/O ports
Line-inYes
Microphone inYes
USB connector typeUSB Type-A
Network3 facts
Network
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo
Features10 facts
Features
Motherboard chipsetIntel H610 Express
Audio output channels7.1 channels
Product colourBlack
PC health monitoringFan, Temperature, Voltage, Water cooling
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Cooling typeActive
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
BIOS2 facts
BIOS
BIOS typeUEFI AMI
Clear CMOS jumperYes
Logistics data1 fact
Logistics data
Country of originChina
Battery4 facts
Battery
Battery weight3 g
Lithium weight per battery0.07 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
