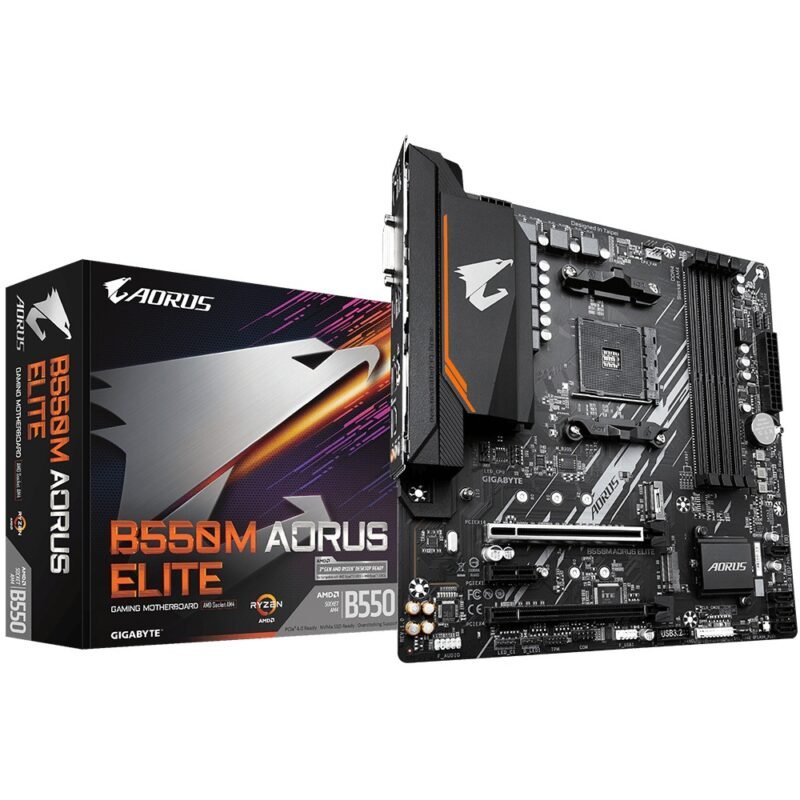

Gigabyte B550M AORUS ELITE Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 2x M.2 Sockets, Fitted I/O Shield, GbE LAN, 1x DVI-D / 1x HDMI Port

SKU B550M AORUS ELITE

At a glance

The Gigabyte B550M AORUS ELITE Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 2x M.2 Sockets, Fitted I/O Shield, GbE LAN, 1x DVI-D / 1x HDMI Port (part number B550M AORUS ELITE) is supplied to trade with pricing on enquiry.

MPNB550M AORUS ELITE
Delivery time2 to 3 days
52 facts in 12 groups

Product information

Product details2 facts
Product details
MPNB550M AORUS ELITE
Delivery time2 to 3 days
Processor4 facts
Processor
Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor socketsSocket AM4
Memory9 facts
Memory
Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported memory clock speed (max)4733 MHz
Maximum internal memory128 GB
Unbuffered memoryYes
Maximum internal memory per slot32 GB
Storage controllers2 facts
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Graphics3 facts
Graphics
Parallel processing technology supportNot supported
Maximum resolution4096 x 2160 pixels
HDCPYes
Internal I/O8 facts
Internal I/O
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
12V power connectorYes
RGB LED pin headerYes
Rear panel I/O ports2 facts
Rear panel I/O ports
Line-inYes
Microphone inYes
Network4 facts
Network
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiNo
Features11 facts
Features
Motherboard chipsetAMD B550
Audio chipRealtek ALC897
Audio output channels7.1 channels
Product colourBrown
PC health monitoringFan, Temperature, Voltage
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
BIOS2 facts
BIOS
BIOS typeUEFI AMI
Clear CMOS jumperYes
Logistics data1 fact
Logistics data
Country of originChina
Battery4 facts
Battery
Battery weight3 g
Lithium weight per battery0.07 g
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
