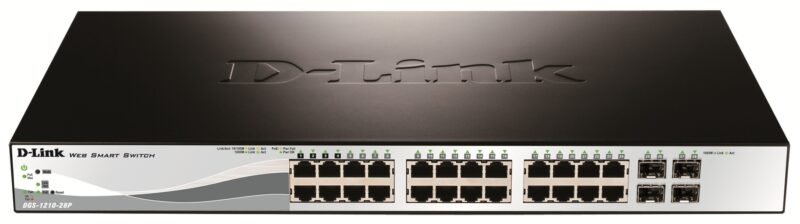

D-LINK WebSmart DGS-1210-28P 24 Ports Manageable Ethernet Switch - 2 Layer Supported
SKU DGS-1210-28P
1 / 1At a glance
The D-LINK WebSmart DGS-1210-28P 24 Ports Manageable Ethernet Switch - 2 Layer Supported (part number DGS-1210-28P) is supplied to trade with pricing on enquiry.
MPNDGS-1210-28P
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | DGS-1210-28P |
|---|---|
| Delivery time | 2 to 3 days |
Management features8 facts
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Y |
Ports & interfaces2 facts
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|---|
| Power connector | AC-in jack |
Network12 facts
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
Data transmission4 facts
| Switching capacity | 56 Gbit/s |
|---|---|
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 4.1 MB |
Security5 facts
| DHCP features | DHCP server, DHCP client |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Loop protection | Yes |
Multicast features1 fact
| Multicast support | Yes |
|---|
Design6 facts
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
Performance5 facts
| Memory type | DDR3-SDRAM |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 51.7 dB |
| Mean time between failures (MTBF) | 469262 h |
Power5 facts
| Power source | AC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 236.9 W |
Power over Ethernet (PoE)2 facts
| Power over Ethernet (PoE) | Yes |
|---|---|
| Total Power over Ethernet (PoE) budget | 193 W |
Operational conditions3 facts
| Operating temperature (T-T) | -5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Heat dissipation | 900.36 BTU/h |
Weight & dimensions4 facts
| Width | 440 mm |
|---|---|
| Depth | 140 mm |
| Height | 44 mm |
| Weight | 2.15 kg |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
