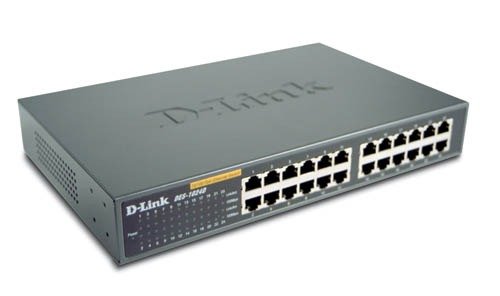

D-LINK Express EtherNetwork DES-1024D 24 Ports Ethernet Switch - 24 x Fast Ethernet Network
SKU DES-1024D/B
1 / 1At a glance
The D-LINK Express EtherNetwork DES-1024D 24 Ports Ethernet Switch - 24 x Fast Ethernet Network (part number DES-1024D/B) is supplied to trade with pricing on enquiry.
MPNDES-1024D/B
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | DES-1024D/B |
|---|---|
| Delivery time | 2 to 3 days |
Management features2 facts
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Yes |
Ports & interfaces1 fact
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
|---|
Network11 facts
| Networking standards | IEEE 802.1D, IEEE 802.3, IEEE 802.3U, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
Data transmission3 facts
| Supported data transfer rates | 100 Mbps |
|---|---|
| Switching capacity | 4.8 Gbit/s |
| Store-and-forward | Yes |
Protocols3 facts
| Switching protocols | Ethernet |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
| Supported network protocols | CSMA/CD |
Design3 facts
| Stackable | No |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, Power |
Performance2 facts
| Internal memory | 2 MB |
|---|---|
| Mean time between failures (MTBF) | 810.88 h |
Power5 facts
| Power source | AC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 2.8 W |
Power over Ethernet (PoE)1 fact
| Power over Ethernet (PoE) | No |
|---|
Other features4 facts
| Dimensions (WxDxH) | 280 x 180 x 44 mm |
|---|---|
| Connectivity technology | Wired |
| I/O ports | 24-10/100Mbps RJ-45 Auto-sensing ports |
| Networking features | 10/100Base – EIA/TIA Categories 3 or 5 cable |
Operational conditions3 facts
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Heat dissipation | 9.5536 BTU/h |
Weight & dimensions4 facts
| Width | 280 mm |
|---|---|
| Depth | 150 mm |
| Height | 44 mm |
| Weight | 1.14 kg |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
