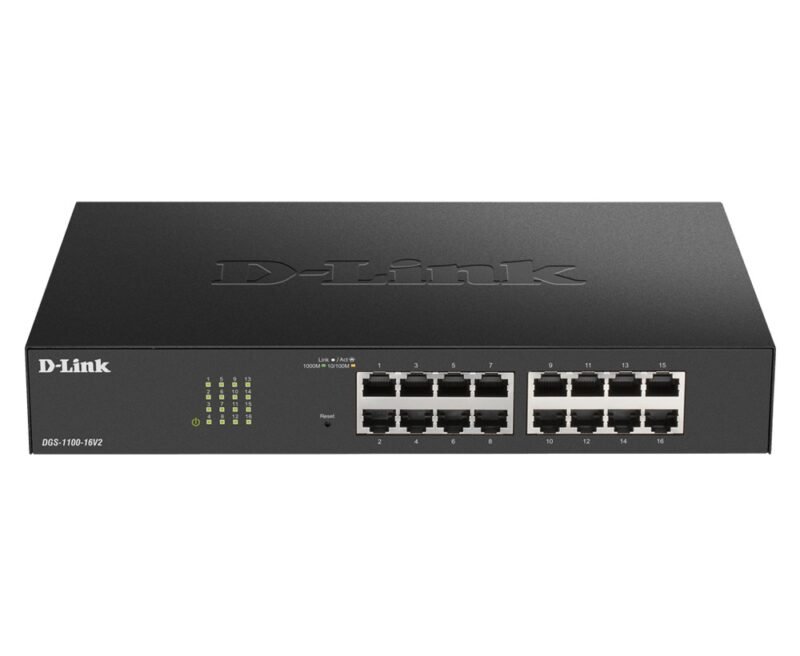

D-LINK DGS-1100-16V2 16 Ports Manageable Ethernet Switch - 2 Layer Supported - Twisted Pair

SKU DGS-1100-16V2

At a glance

The D-LINK DGS-1100-16V2 16 Ports Manageable Ethernet Switch - 2 Layer Supported - Twisted Pair (part number DGS-1100-16V2) is supplied to trade with pricing on enquiry.

MPNDGS-1100-16V2
Delivery time2 to 3 days
54 facts in 13 groups

Product information

Product details2 facts
Product details
MPNDGS-1100-16V2
Delivery time2 to 3 days
Management features5 facts
Management features
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes
Ports & interfaces1 fact
Ports & interfaces
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network16 facts
Network
Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 10BASE-TX, 1000BASE-T
Port mirroringYes
Full duplexYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresPort-based VLAN, Voice VLAN
Data transmission4 facts
Data transmission
Switching capacity32 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Packet buffer memory4.1 MB
Security4 facts
Security
DHCP featuresDHCP client
IGMP snoopingYes
Security algorithmsSNMP, SSL/TLS
Queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)
Multicast features1 fact
Multicast features
Multicast supportYes
Design3 facts
Design
Rack mountingYes
Product colourBlack
LED indicatorsYes
Performance7 facts
Performance
Built-in processorYes
Processor frequency125 MHz
Memory typeDRAM
Flash memory16 MB
Noise level0 dB
FanlessYes
Mean time between failures (MTBF)710519 h
Power2 facts
Power
AC input voltage100 - 240 V
Power consumption (max)10.1 W
Power over Ethernet (PoE)1 fact
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions4 facts
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating altitude0 - 2000 m
Heat dissipation34.46 BTU/h
Weight & dimensions4 facts
Weight & dimensions
Width280 mm
Depth180 mm
Height44 mm
Weight1.27 kg

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

D-LINK DGS-1100-16V2 16 Ports Manageable Ethernet Switch - 2 Layer Supported - Twisted PairAsk for a quote
