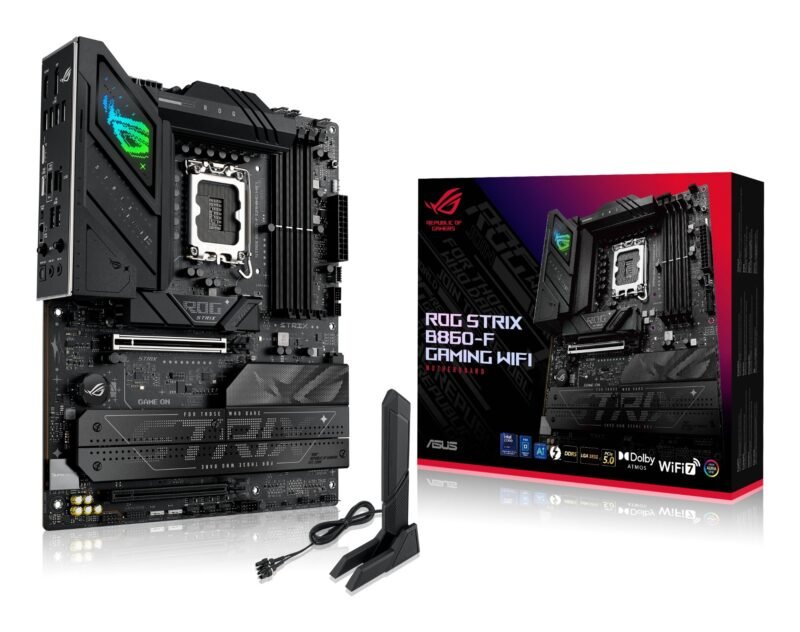

ASUS ROG STRIX B860-F GAMING WIFI Motherboard -
SKU 90MB1JG0-M0EAY0
1 / 1At a glance
The ASUS ROG STRIX B860-F GAMING WIFI Motherboard - (part number 90MB1JG0-M0EAY0) is supplied to trade with pricing on enquiry.
MPN90MB1JG0-M0EAY0
Delivery time1 to 2 days
Product information
Product details2 facts
| MPN | 90MB1JG0-M0EAY0 |
|---|---|
| Delivery time | 1 to 2 days |
Processor3 facts
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
Memory7 facts
| Supported memory types | DDR5-SDRAM |
|---|---|
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 9066 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
Storage controllers3 facts
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
Graphics1 fact
| Parallel processing technology support | Not supported |
|---|
Internal I/O6 facts
| Front panel audio connector | Yes |
|---|---|
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
Rear panel I/O ports2 facts
| Microphone in | Yes |
|---|---|
| S/PDIF out port | Yes |
Network5 facts
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
Features8 facts
| Motherboard chipset | Intel B860 |
|---|---|
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 |
BIOS2 facts
| BIOS type | UEFI AMI |
|---|---|
| Clear CMOS button | Yes |
Packaging data4 facts
| Package width | 350 mm |
|---|---|
| Package depth | 265 mm |
| Package height | 71 mm |
| Package weight | 2.29 kg |
Weight & dimensions3 facts
| Width | 305 mm |
|---|---|
| Depth | 244 mm |
| Height | 50 mm |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
