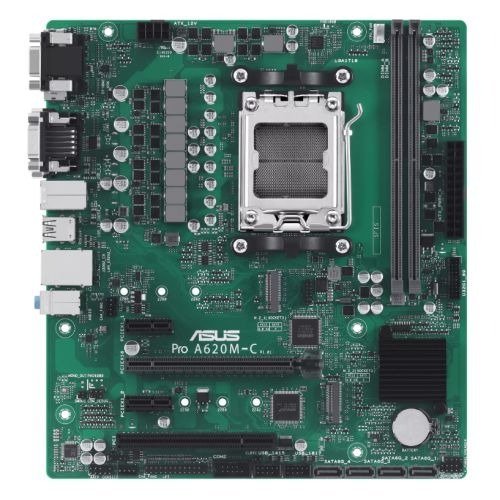

Asus PRO A620M-C-CSM - Corporate Stable Model, AMD A620, AM5, Micro ATX, 2 DDR5, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2
SKU 90MB1F80-M0EAYC
1 / 1At a glance
The Asus PRO A620M-C-CSM - Corporate Stable Model, AMD A620, AM5, Micro ATX, 2 DDR5, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2 (part number 90MB1F80-M0EAYC) is supplied to trade with pricing on enquiry.
MPN90MB1F80-M0EAYC
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | 90MB1F80-M0EAYC |
|---|---|
| Delivery time | 2 to 3 days |
Processor4 facts
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
Memory8 facts
| Supported memory types | DDR5-SDRAM |
|---|---|
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
Storage controllers3 facts
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
Graphics1 fact
| Parallel processing technology support | Not supported |
|---|
Internal I/O7 facts
| Front panel audio connector | Yes |
|---|---|
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
Rear panel I/O ports2 facts
| Line-in | Yes |
|---|---|
| Microphone in | Yes |
Network4 facts
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
Features8 facts
| Motherboard chipset | AMD A620 |
|---|---|
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
BIOS1 fact
| BIOS type | UEFI AMI |
|---|
Packaging data4 facts
| Package width | 270 mm |
|---|---|
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 950 g |
Weight & dimensions2 facts
| Width | 244 mm |
|---|---|
| Depth | 224 mm |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
