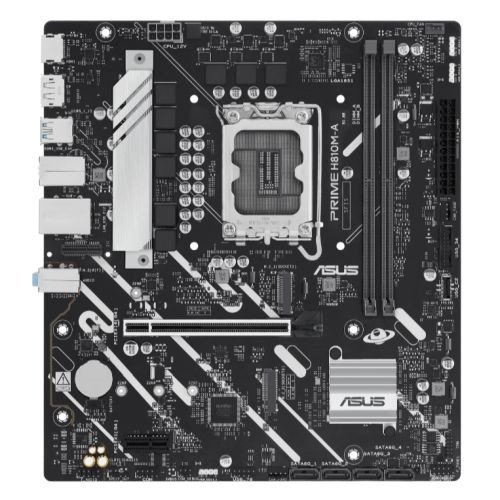

Asus PRIME H810M-A-CSM - Corporate Stable Model, Intel H810, 1851, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, 2x M.2
SKU 90MB1KK0-M0EAYC
1 / 1At a glance
The Asus PRIME H810M-A-CSM - Corporate Stable Model, Intel H810, 1851, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, 2x M.2 (part number 90MB1KK0-M0EAYC) is supplied to trade with pricing on enquiry.
MPN90MB1KK0-M0EAYC
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | 90MB1KK0-M0EAYC |
|---|---|
| Delivery time | 2 to 3 days |
Processor4 facts
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
Memory7 facts
| Supported memory types | DDR5-SDRAM |
|---|---|
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Storage controllers2 facts
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
Graphics2 facts
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
Internal I/O8 facts
| S/PDIF out connector | Yes |
|---|---|
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
Rear panel I/O ports2 facts
| Line-in | Yes |
|---|---|
| Microphone in | Yes |
Network6 facts
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I219V |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
Features8 facts
| Motherboard chipset | Intel H810 |
|---|---|
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
BIOS1 fact
| BIOS type | UEFI AMI |
|---|
Packaging data4 facts
| Package width | 270 mm |
|---|---|
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 782 g |
Weight & dimensions3 facts
| Width | 244 mm |
|---|---|
| Depth | 222 mm |
| Height | 37 mm |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
Asus PRIME H810M-A-CSM - Corporate Stable Model, Intel H810, 1851, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, 2x M.2
