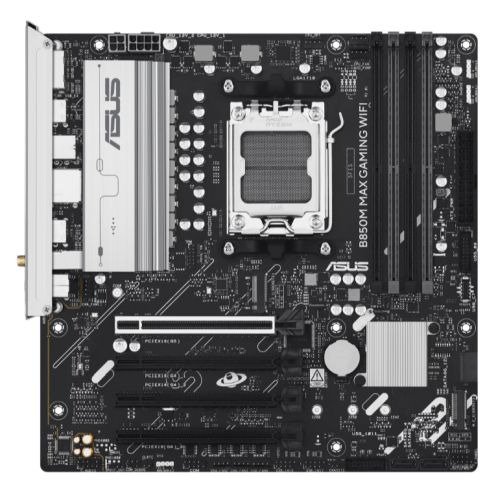

Asus B850M MAX GAMING WIFI, AMD B850, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, GB LAN, 3x M.2
SKU 90MB1LL0-M0EAY0
1 / 1At a glance
The Asus B850M MAX GAMING WIFI, AMD B850, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, GB LAN, 3x M.2 (part number 90MB1LL0-M0EAY0) is supplied to trade with pricing on enquiry.
MPN90MB1LL0-M0EAY0
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | 90MB1LL0-M0EAY0 |
|---|---|
| Delivery time | 2 to 3 days |
Processor4 facts
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
Memory6 facts
| Supported memory types | DDR5-SDRAM |
|---|---|
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
Storage controllers3 facts
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
Graphics2 facts
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
Internal I/O10 facts
| S/PDIF out connector | Yes |
|---|---|
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
Rear panel I/O ports2 facts
| Line-in | Yes |
|---|---|
| Microphone in | Yes |
Network6 facts
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
Features8 facts
| Motherboard chipset | AMD B850 |
|---|---|
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
BIOS1 fact
| BIOS type | UEFI AMI |
|---|
Packaging data4 facts
| Package width | 275 mm |
|---|---|
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.38 kg |
Weight & dimensions2 facts
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
