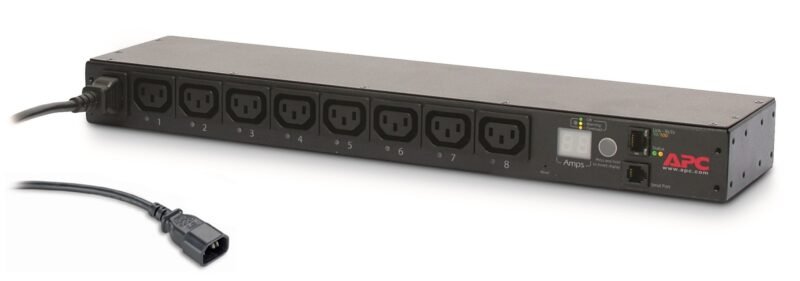

APC Switched Rack PDU AP7920B - power distribution strip - 2300 VA

SKU AP7920B

At a glance

The APC Switched Rack PDU AP7920B - power distribution strip - 2300 VA (part number AP7920B) is supplied to trade with pricing on enquiry.

MPNAP7920B
Delivery time2 to 3 days
35 facts in 11 groups

Product information

Product details2 facts
Product details
MPNAP7920B
Delivery time2 to 3 days
Design4 facts
Design
PDU typesMetered, Switched
Rack capacity0U/1U
MountingHorizontal/Vertical
Product colourBlack
Ports & interfaces3 facts
Ports & interfaces
Power plugC14 coupler
AC outlet typesC13 coupler
Input connection typeIEC-320 C14
Features1 fact
Features
Cable length1.98 m
Management features2 facts
Management features
MonitoringCurrent, Power, Voltage
Outlet controlLock-out, Recycle, Turn off, Turn on
Power8 facts
Power
Nominal input voltage200-230 V
AC input frequency50 - 60 Hz
Maximum current10 A
Nominal output voltage208-230 V
Load capacity2300 VA
Maximum input current per phase10 A
Maximum total current draw per phase10 A
Maximum power2300 W
Certificates2 facts
Certificates
Compliance certificatesRoHS
CertificationcUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Operational conditions4 facts
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating altitude0 - 3000 m
Non-operating altitude1 - 15000 m
Weight & dimensions4 facts
Weight & dimensions
Width445 mm
Depth108 mm
Height44 mm
Weight2.27 kg
Packaging content1 fact
Packaging content
Packaging contentInstallation Guide, Rack Mounting Brackets, User Manual
Packaging data4 facts
Packaging data
Package weight3.45 kg
Package width470 mm
Package depth343 mm
Package height70 mm

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
