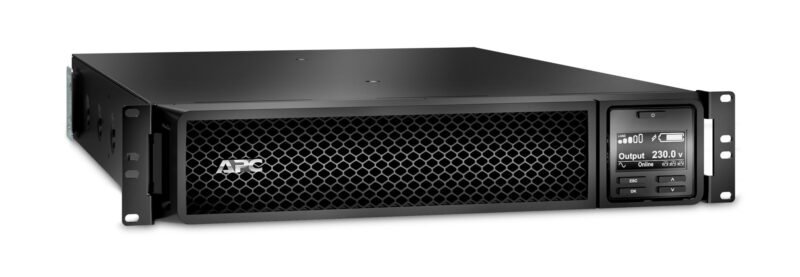

APC Smart-UPS SRT 2200VA 2U incl. AP9631Online
SKU SRT2200RMXLI-NC
1 / 1At a glance
The APC Smart-UPS SRT 2200VA 2U incl. AP9631Online (part number SRT2200RMXLI-NC) is supplied to trade with pricing on enquiry.
MPNSRT2200RMXLI-NC
Delivery time1 to 2 days
Product information
Product details2 facts
| MPN | SRT2200RMXLI-NC |
|---|---|
| Delivery time | 1 to 2 days |
Features13 facts
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
Ports & interfaces6 facts
| AC outlet types | C13 coupler, C19 coupler |
|---|---|
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| SmartConnect port | No |
Battery3 facts
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
Design7 facts
| Form factor | Rackmount |
|---|---|
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
Operational conditions4 facts
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Certificates2 facts
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
Packaging content1 fact
| Management card included | Yes |
|---|
Sustainability1 fact
| Sustainability certificates | ENERGY STAR, Green Premium |
|---|
Weight & dimensions4 facts
| Width | 432 mm |
|---|---|
| Depth | 584 mm |
| Height | 85 mm |
| Weight | 25 kg |
Packaging data4 facts
| Package width | 599 mm |
|---|---|
| Package depth | 810 mm |
| Package height | 246 mm |
| Package weight | 34 kg |
Other features1 fact
| Output voltage | 230 V |
|---|
