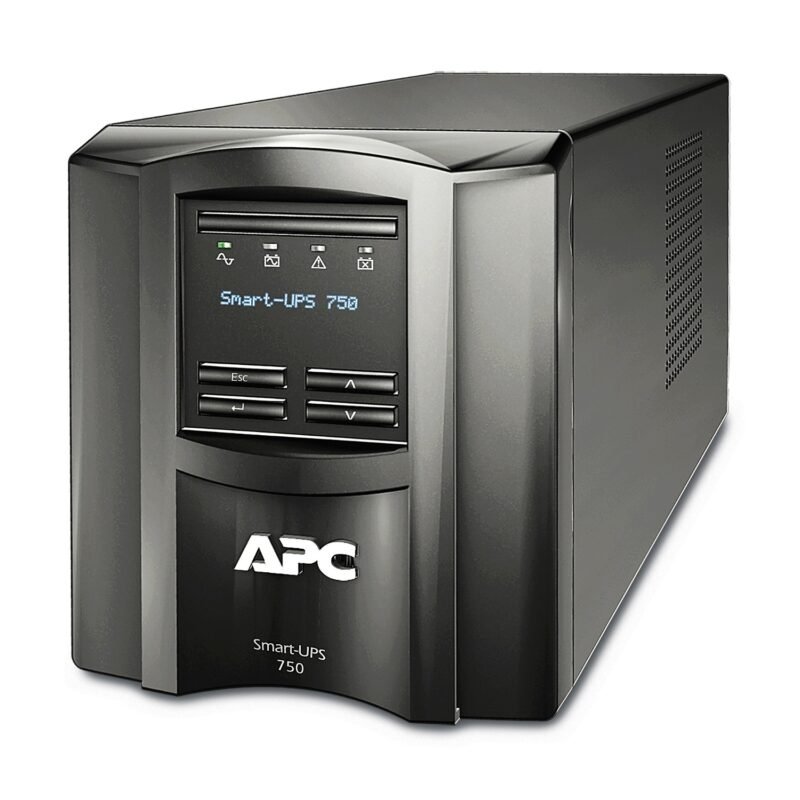

APC Smart-UPS 750VA LCD SmartConnectLine-Interactive
SKU SMT750IC
1 / 1At a glance
The APC Smart-UPS 750VA LCD SmartConnectLine-Interactive (part number SMT750IC) is supplied to trade with pricing on enquiry.
MPNSMT750IC
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | SMT750IC |
|---|---|
| Delivery time | 2 to 3 days |
Features13 facts
| UPS topology | Line-Interactive |
|---|---|
| Output power | 500 W |
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Automatic Voltage Regulation (AVR) | Yes |
| Efficiency | 98% |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
Ports & interfaces5 facts
| AC outlet types | C13 coupler |
|---|---|
| Power plug | C14 coupler |
| USB port | Yes |
| SmartSlot | Yes |
| SmartConnect port | Yes |
Battery9 facts
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Typical backup time at full load | 4.6 min |
| Typical backup time at half load | 15.8 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Replacement battery cartridge | rbc48 |
Design5 facts
| Form factor | Tower |
|---|---|
| Cable length | 1.83 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Status |
Operational conditions4 facts
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Certificates2 facts
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
Packaging content4 facts
| Cables included | USB cable |
|---|---|
| Management card included | No |
| Manual | Yes |
| Quick installation guide | Yes |
Weight & dimensions4 facts
| Width | 138 mm |
|---|---|
| Depth | 358 mm |
| Height | 157 mm |
| Weight | 13.2 kg |
Packaging data5 facts
| Bundled software | PowerChute Serial Edition |
|---|---|
| Package width | 278 mm |
| Package depth | 499 mm |
| Package height | 301 mm |
| Package weight | 14.2 kg |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
