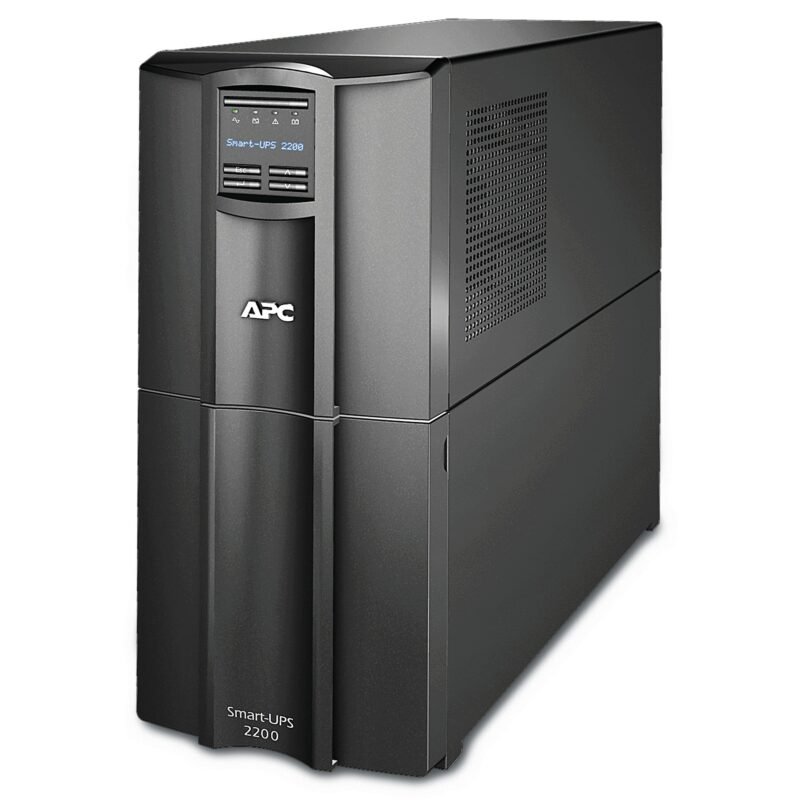

APC Smart-UPS 2200VA LCD SmartConnectLine-Interactive
SKU SMT2200IC
1 / 1At a glance
The APC Smart-UPS 2200VA LCD SmartConnectLine-Interactive (part number SMT2200IC) is supplied to trade with pricing on enquiry.
MPNSMT2200IC
Delivery time2 to 3 days
Product information
Product details2 facts
| MPN | SMT2200IC |
|---|---|
| Delivery time | 2 to 3 days |
Features16 facts
| UPS topology | Line-Interactive |
|---|---|
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Response time | 6 ms |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 45 dB |
| Power protection features | Over voltage, Overload |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Battery replacement |
| Auto-restart | Yes |
Ports & interfaces6 facts
| AC outlet types | C13 coupler, C19 coupler |
|---|---|
| USB port | Yes |
| USB port type | USB Type-A |
| Serial interface | Yes |
| SmartSlot | Yes |
| SmartConnect port | Yes |
Battery5 facts
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Typical backup time at full load | 8.7 min |
| Typical backup time at half load | 25 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
Design3 facts
| Product colour | Black |
|---|---|
| Display type | LCD |
| LED indicators | Yes |
Operational conditions4 facts
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Certificates2 facts
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
Packaging content2 facts
| Cables included | RS-232, USB cable |
|---|---|
| Management card included | No |
Sustainability1 fact
| Sustainability certificates | Green Premium |
|---|
Weight & dimensions4 facts
| Width | 197 mm |
|---|---|
| Depth | 544 mm |
| Height | 435 mm |
| Weight | 48.8 kg |
Packaging data5 facts
| Software CD | Yes |
|---|---|
| Package width | 381 mm |
| Package depth | 762 mm |
| Package height | 699 mm |
| Package weight | 61.9 kg |
