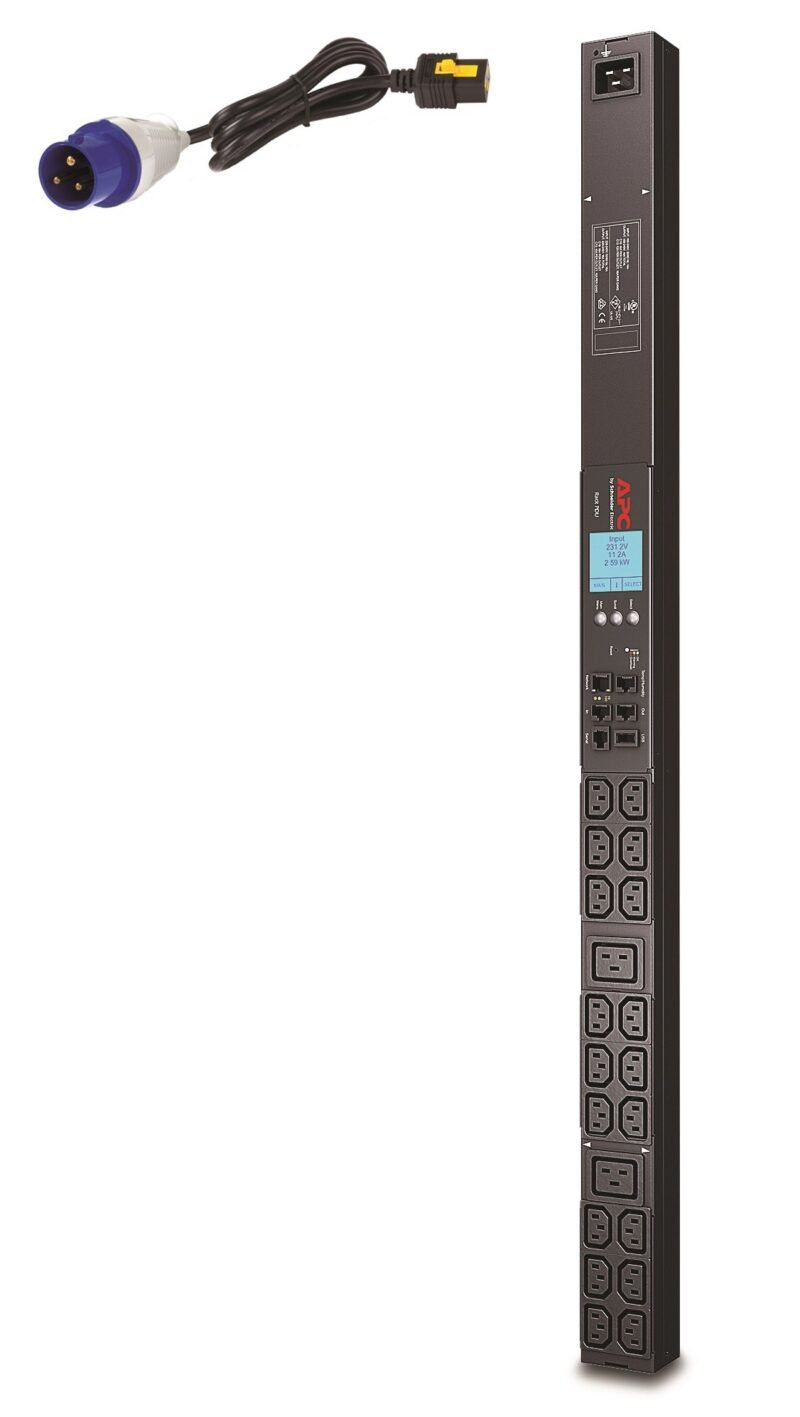

APC Metered Rack PDU ZeroU 2G - power distribution strip

SKU AP8858EU3

At a glance

The APC Metered Rack PDU ZeroU 2G - power distribution strip (part number AP8858EU3) is supplied to trade with pricing on enquiry.

MPNAP8858EU3
Delivery time2 to 3 days
28 facts in 10 groups

Product information

Product details2 facts
Product details
MPNAP8858EU3
Delivery time2 to 3 days
Design3 facts
Design
PDU typesMetered
Rack capacity0U
MountingVertical
Ports & interfaces4 facts
Ports & interfaces
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC 309 16A 2P+E
Output connections18x IEC 320 C13 2x IEC 320 C19
Features1 fact
Features
Cable length3 m
Management features1 fact
Management features
MonitoringCurrent, Power, Voltage
Power6 facts
Power
AC input frequency50 - 60 Hz
Nominal output voltage230 V
Load capacity3680 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Maximum power3680 W
Certificates1 fact
Certificates
CertificationCSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
Operational conditions2 facts
Operational conditions
Operating temperature (T-T)5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Weight & dimensions4 facts
Weight & dimensions
Width56 mm
Depth44 mm
Height902 mm
Weight2.93 kg
Packaging data4 facts
Packaging data
Package weight4.92 kg
Package width162 mm
Package depth107 mm
Package height1124 mm

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

APC Metered Rack PDU ZeroU 2G - power distribution stripAsk for a quote
