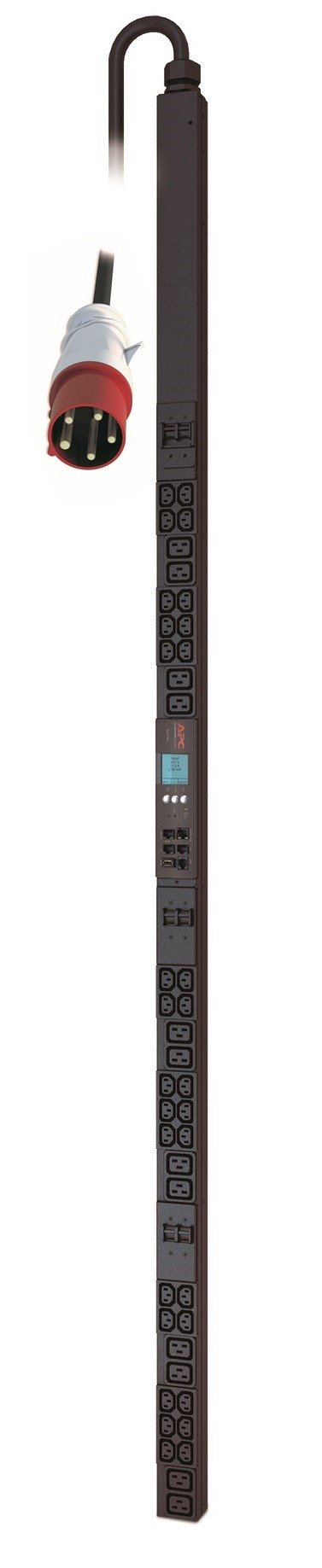

APC Metered Rack PDU - power distribution unit

SKU AP8886

At a glance

The APC Metered Rack PDU - power distribution unit (part number AP8886) is supplied to trade with pricing on enquiry.

MPNAP8886
Delivery time1 to 2 days
34 facts in 10 groups

Product information

Product details2 facts
Product details
MPNAP8886
Delivery time1 to 2 days
Design4 facts
Design
PDU typesMetered
Rack capacity0U
MountingVertical
Product colourBlack
Ports & interfaces3 facts
Ports & interfaces
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Output connections30 x IEC 320 C13 12 x IEC 320 C19
Features2 facts
Features
LED indicatorsYes
Cable length1.83 m
Management features1 fact
Management features
MonitoringCurrent, Power, Voltage
Power8 facts
Power
Nominal input voltage400 V
AC input frequency50 - 60 Hz
Maximum current32 A
Nominal output voltage230 V
Load capacity22080 VA
Maximum input current per phase32 A
Power protection featuresOverload
Maximum power22000 W
Certificates2 facts
Certificates
Compliance certificatesRoHS
CertificationEN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Operational conditions4 facts
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-25 - 65 °C
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Weight & dimensions4 facts
Weight & dimensions
Width56 mm
Depth51 mm
Height1829 mm
Weight8.72 kg
Packaging data4 facts
Packaging data
Package weight11.6 kg
Package width170 mm
Package depth112 mm
Package height2050 mm

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

APC Metered Rack PDU - power distribution unitAsk for a quote
