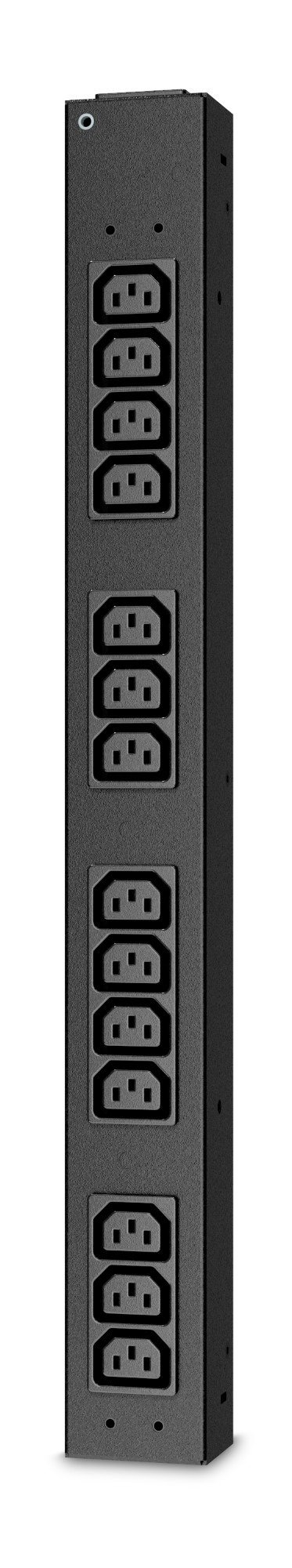

APC Basic Rack PDU - power distribution unit

SKU AP6003A

At a glance

The APC Basic Rack PDU - power distribution unit (part number AP6003A) is supplied to trade with pricing on enquiry.

MPNAP6003A
Delivery time2 to 3 days
32 facts in 8 groups

Product information

Product details2 facts
Product details
MPNAP6003A
Delivery time2 to 3 days
Design5 facts
Design
PDU typesBasic
TypeSingle-phase
Rack capacity0U/2U
MountingHorizontal/Vertical
Product colourBlack
Ports & interfaces3 facts
Ports & interfaces
Power plugC20 coupler
AC outlet typesC13 coupler
Input connection typeIEC-320 C20
Power8 facts
Power
Nominal input voltage230 V
AC input frequency50 - 60 Hz
Maximum current20 A
Nominal output voltage100-240 V
Load capacity3680 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Maximum power3680 W
Certificates2 facts
Certificates
Compliance certificatesRoHS
CertificationcUL, UL, REACH
Operational conditions4 facts
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-15 - 65 °C
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Weight & dimensions4 facts
Weight & dimensions
Width56 mm
Depth47 mm
Height523 mm
Weight1.88 kg
Packaging data4 facts
Packaging data
Package weight2.55 kg
Package width123 mm
Package depth107 mm
Package height612 mm

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

APC Basic Rack PDU - power distribution unitAsk for a quote
