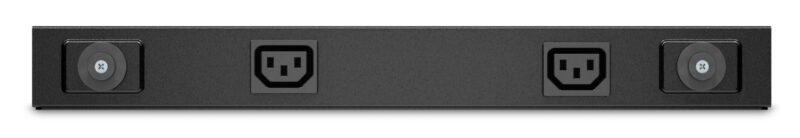

APC Basic Rack PDU AP6020A - power distribution unit

SKU AP6020A

At a glance

The APC Basic Rack PDU AP6020A - power distribution unit (part number AP6020A) is supplied to trade with pricing on enquiry.

MPNAP6020A
Delivery time2 to 3 days
30 facts in 8 groups

Product information

Product details2 facts
Product details
MPNAP6020A
Delivery time2 to 3 days
Design5 facts
Design
PDU typesBasic
TypeSingle-phase
Rack capacity0U/1U
MountingHorizontal/Vertical
Product colourBlack
Ports & interfaces3 facts
Ports & interfaces
Power plugC20 coupler
AC outlet typesC13 coupler
Output connectionsIEC 320 C13
Power7 facts
Power
Nominal input voltage100-240 V
AC input frequency50 - 60 Hz
Maximum current20 A
Load capacity3680 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Maximum power3680 W
Certificates2 facts
Certificates
Compliance certificatesRoHS
CertificationcUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH
Operational conditions3 facts
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-15 - 60 °C
Operating altitude0 - 3048 m
Weight & dimensions4 facts
Weight & dimensions
Width44 mm
Depth93 mm
Height388 mm
Weight1.5 kg
Packaging data4 facts
Packaging data
Package weight2.02 kg
Package width210 mm
Package depth76 mm
Package height436 mm

Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.

APC Basic Rack PDU AP6020A - power distribution unitAsk for a quote
