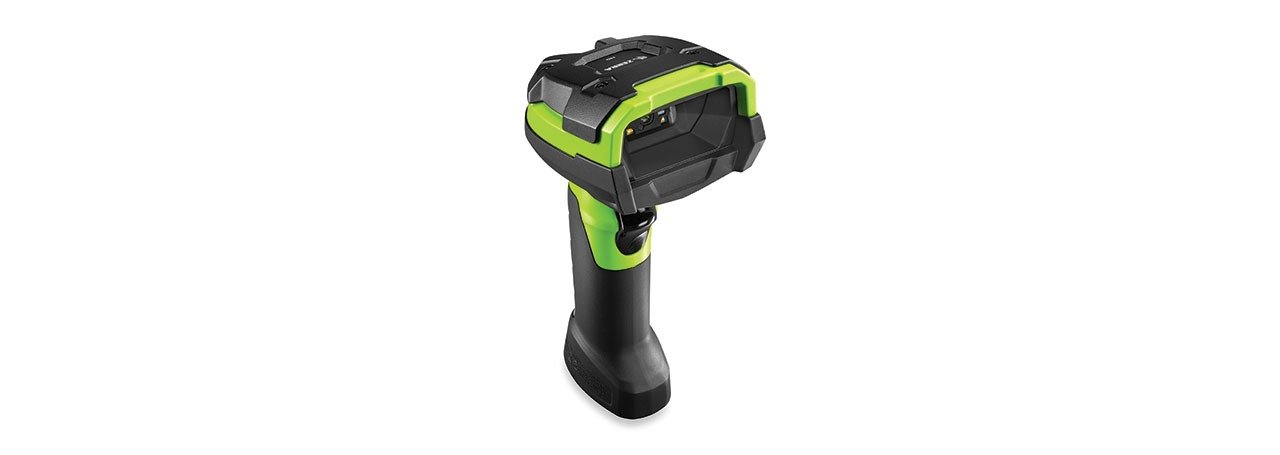

ZEBRA TECHNOLOGIES DS3678-HD Handheld Barcode Scanner – Wireless Connectivity – Industrial Green – 1
Brand: Zebra Technologies
- Type
- Handheld bar code reader
- Optical sensor resolution
- 1280 pixels
- Scanner type
- 1D/2D
- Sensor type
- Laser
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
About this item
- Handheld bar code reader Black, Green
- Scanner type: 1D/2D Sensor type: Laser
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Tilt reading angle: -65 - 65°
- Wired & Wireless Standard interfaces: RS-232, USB, Keyboard wedge
- Bluetooth Low Energy (BLE)
- Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh
£612.20 £617.70 (inc. VAT)
7 in stock
Free delivery on trade orders. Returns accepted within 30 days.
Delivery & returns info ›
Trade account & bulk pricing ›
Product description
Zebra DS3678-HD, Handheld bar code reader, 1D/2D, Laser, Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C., Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417,..., 655 nm
Product information
Scanning
| Type | Handheld bar code reader |
|---|---|
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 655 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|---|
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Ethernet LAN | Yes |
Performance
| International Protection (IP) code | IP67 |
|---|---|
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Programming function | Yes |
Power
| Power source type | Battery |
|---|---|
| Number of reads per charge | 100000 |
Weight & dimensions
| Width | 142 mm |
|---|---|
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 411 g |
Operational conditions
| Operating temperature (T-T) | -20 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery capacity | 3100 mAh |
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
